TCL Elite XA73 18K Split Air Conditioner Set - S18F2S1
The TCL Elite XA73 split air conditioner ensures a perfect, comfortable climate with rapid cooling, quiet operation, and smart controls. Energy-efficient, compact, and with precise airflow—ideal for modern living and workspaces. Experience a new level of comfort now!
The TCL Elite XA73 split air conditioner ensures a perfect, comfortable climate with rapid cooling, quiet operation, and smart controls. Energy-efficient, compact, and with precise airflow—ideal for modern living and workspaces. Experience a new level of comfort now!
TCL Elite XA73 18,000 BTU 5.1 kW Split Air Conditioner
9,000 BTU
Room size
up to 30 m²
Internal Dimensions
777x250x201mm
12,000 BTU
Room size
up to 45 m²
Internal Dimensions
777 x 250 x 201 mm
18,000 BTU
Room size
up to 60 m²
Internal Dimensions
910×294×206 mm
24,000 BTU
Room size
up to 80 m²
Internal Dimensions
1,186 × 340 × 258 mm
Feature Overview
The TCL Elite XA73 air conditioner is the ideal choice for cooling residential and commercial spaces. It not only offers excellent cooling capacity but also an efficient heating function that ensures comfort all year round. The unit uses advanced inverter technology, which ensures exceptionally quiet operation and a constant room temperature. This technology continuously adjusts the compressor’s output to match the
current demand, resulting in significant energy savings and minimizing noise levels.
Thanks to its high energy efficiency ratings—A++ in cooling mode and A+ in heating mode—the TCL Elite F2 is particularly eco-friendly and economical. It significantly reduces electricity consumption compared to conventional air conditioners, which has a positive effect on your electricity bill. The unit uses the eco-friendly refrigerant R-32, which not only increases efficiency but also minimizes the impact on the environment.
The air conditioner is equipped with Wi-Fi functionality, allowing you to conveniently control the unit via the TCL Home app or through voice control with Google Assistant and Alexa. This way, you can adjust the temperature even when you’re not at home, ensuring a comfortable indoor climate at all times.
Smart Airflow
Perfect Climate Control: Cooling from Above for Even Temperatures
The split air conditioner utilizes a natural physical principle: cool air sinks downward. That’s why the innovative cooling system starts specifically from the ceiling, ensuring optimal distribution of cool air throughout the entire
room.
The airflow directed from above ensures a uniform temperature from floor to ceiling. This prevents unpleasant cold spots and an uneven indoor climate—instead, you’ll enjoy a harmonious,
perfectly tempered environment at all times.
With this intelligent cooling technology, the Elite XA73 provides efficient, gentle, and exceptionally comfortable cooling—ideal for hot summer days and a new level of indoor comfort.
Heating and Cooling in Turbo Mode
Optimal heat distribution: Heating from below for maximum efficiency
The split air conditioner utilizes the natural tendency of warm air to rise. In heating mode, the warm air is specifically distributed in the lower part of the room and then rises evenly. This creates a pleasant, constant warmth from the floor to
the ceiling.
Thanks to this sophisticated airflow design, the areas where you spend your time warm up faster and more efficiently. The entire room benefits from optimal heat distribution, without cold spots or uncomfortable temperature differences.
With this intelligent heating technology, you’ll enjoy maximum comfort on cold days while saving energy—for a cozy home that adapts perfectly to your needs.
4-Way Airflow
The 4-way airflow of the TCL Elite F2 air conditioner ensures even distribution of cooled or heated air throughout the room. Automatic horizontal and vertical airflow control directs the air to every corner of the room,
enabling efficient and comprehensive room climate control.
Fresh, Clean Air for Your Home
Enjoy clean and healthy indoor air at all times
The TCL split air conditioner not only ensures perfect temperatures but also the best air quality. An efficient, top-mounted filter reliably removes dust and other pollutants from the air—for a fresh
and hygienic indoor environment with every breath. Since the filter is easily accessible, cleaning is particularly straightforward, ensuring that air quality remains at the highest level over the long term. This way, you and your family can
enjoy healthy, clean air—day after day.
I Feel Function
Smart temperature control right where you are
With the innovative “I Feel” feature of the TCL Elite Split Air Conditioner, climate comfort becomes even more personalized. A built-in temperature sensor in the remote control measures the current temperature right where you are. This way, the air conditioner adjusts its output not based on the room temperature at the unit, but precisely according to your individual comfort zone.
This means that whether you’re on the sofa, at the dining table, or in the bedroom—your TCL Elite automatically adjusts the climate control to your immediate surroundings and ensures a consistently pleasant indoor climate.
Enjoy maximum precision, ultimate comfort, and climate control that flexibly adapts to your needs—with TCL’s intelligent “I Feel” technology.
Smart control anywhere, anytime
Comfort at the touch of a button—anywhere, anytime
With the split air conditioner, you can control your indoor climate more easily and flexibly than ever before. Whether using the classic method with the handy remote control or modern control via the app: you have full control over all functions—at any time
and from anywhere.
Using the TCL Home app, you can conveniently adjust operating modes, temperatures, and timers via your smartphone or tablet. Thanks to smart home integration, voice control via Amazon Alexa or Google Assistant is also possible—simply set it up
and enjoy your desired temperature with a voice command.
To use the smart features, all you need is a Wi-Fi network and a compatible device. This makes personalized comfort an integral part of your everyday life—smart, intuitive, and efficient.
* Requires a Wi-Fi connection, a compatible device, and, if applicable, additional accounts with Google or Amazon. Data and subscription fees may apply. Google is a trademark of Google LLC. Amazon, Alexa, and all associated logos are trademarks of Amazon.com, Inc. or its subsidiaries.
ECO Mode
With TCL Eco Mode, you can cool or heat more efficiently. It reduces energy consumption, saves on energy costs, and maintains a narrow temperature range.
Automatic Cleaning for Lasting Fresh Air
Self-cleaning for hygienic freshness and maximum comfort
The split air conditioner features an intelligent 4-stage Auto-Clean function that effectively removes dirt, dust, and contaminants using natural water molecules in the air. The entire cleaning process is automatic,
efficient, and ensures that the air in your home always remains fresh and clean.
In addition, the system provides timely reminders when the filter needs cleaning, ensuring that the unit’s efficiency is maintained over the long term and that hygiene standards are effortlessly met. This way, you not only enjoy clean indoor air,
but also extend the service life of your air conditioner.
With Auto-Clean, you can transform your home into a healthy oasis of well-being—with minimal effort and always with the assurance of a perfectly maintained system.
Restful Sleep in a Perfect Indoor Climate
Whisper-quiet operation and gentle temperature control for your night
With Sleep Mode, you can enjoy restful sleep in an optimal indoor climate. In this mode, the air conditioner adjusts the temperature in subtle increments so that your body remains in the ideal comfort zone while you sleep—whether it’s
summer or winter.
At the same time, the noise level is reduced to a minimum, so the air conditioner operates whisper-quietly and doesn’t disturb your rest. The gentle air circulation also prevents unpleasant drafts or sudden temperature fluctuations.
Start every day feeling refreshed and relaxed—with the intelligent Sleep Mode for comfortable nights and undisturbed rest.
Thoughtful Design for Easy Cleaning
Clean air made easy—with the Easy Clean design
The TCL Elite was designed so that all key components are easily accessible and simple to clean. Thanks to its clever design, filters, fins, the cover, and other parts can be removed, cleaned, and
reinstalled without tools.
This ensures that your air conditioner not only stays hygienically clean but also maintains its performance over the long term. Regular manual cleaning helps extend the unit’s lifespan and ensures that the air in your rooms is always fresh and healthy.
A well-thought-out hygiene concept for anyone who values comfort, cleanliness, and easy maintenance.
Outstanding performance even in extreme heat
Reliable cooling even at extreme temperatures
When outdoor temperatures soar, the TCL Elite Split Air Conditioner keeps things pleasantly cool. Thanks to its intelligent design featuring an air-cooled E-Box, the system delivers full cooling capacity even at outdoor temperatures of
up to 50°C.
The robust technology ensures that comfort is not compromised even during heat waves—ideal for regions with intense sunlight or hot summer days. The air conditioner is designed to operate consistently and reliably even under extreme conditions.
Choose an air conditioner that defies the heat and ensures pleasant coolness in your home at all times—without compromise.
MODES
Cooling
Efficient cooling for hot days. Enjoy a pleasantly cool indoor climate with minimal energy consumption.
Heating
Optimal air circulation for even temperature distribution. Improves indoor air quality and comfort.
Dehumidification
Effectively reduces humidity by up to 1.2 L/h for a healthier indoor environment. Prevents mold growth and improves living comfort.
Supersilence
Minimal fan noise ensures whisper-quiet operation and peaceful nights.
Special Features
I-FEEL
Temperature sensor in the remote control—measures temperature directly where you are for precise comfort.
HEALTH
Ionizer technology purifies the air in the room and reduces pollutants and allergens.
SLEEP
Gentle temperature adjustment & whisper-quiet operation—for peaceful and restful nights.
MOLD
Automatic drying of the indoor unit—prevents mold and bacterial growth.
LED display with dimming function—lights off at night for undisturbed sleep.
Technical Specifications
12,000 BTU
18,000 BTU
Technical Specifications
Rated cooling capacity (W)
3,400 (1,000–3,770)
5,100 (1,250–5,910)
Rated heating capacity (W)
3,430 (1,000–3,810)
5,100 (1,250–6,070)
Energy efficiency class (cooling)
A++
A++
Energy efficiency class for heating
A+
A+
6.1
6.1
3.71
3.71
Power Consumption for Cooling Only (kWh/a)
195
293
Power consumption (kWh/year)
840
1,330
Sound power level indoors (S/H/M/L/Mute) (dB(A))
52/48/43/39/32
53/50/47/43/36
Circulation
Refrigerant (GWP)
R32 (GWP 675)
R32 (GWP 675)
Filling Capacity (kg)
0.57 kg
1.00 kg
CO₂ equivalent (t)
0.385 t
0.675 t
Connections / Threads
3/8" gas connection and 1/4" liquid
3/8" gas connection and 1/4" liquid
Power consumption
Power supply
220-240V~/50Hz/1P
220–240 V AC /50Hz/1P
Power consumption (cooling) (W)
1053 (290–1500)
1580 (330–2340)
Power consumption (heating) (W)
925 (290–1730)
1,374 (340–2,520)
Product Dimensions
Internal Dimensions (W x H x D)
777 × 250 × 201 mm
910 × 294 × 206 mm
External Dimensions (WxHxD)
777×498×290 mm
853×602×349 mm
Internal weight
7.5 kg
9.5 kg
Weight (external)
22.5 kg
31 kg

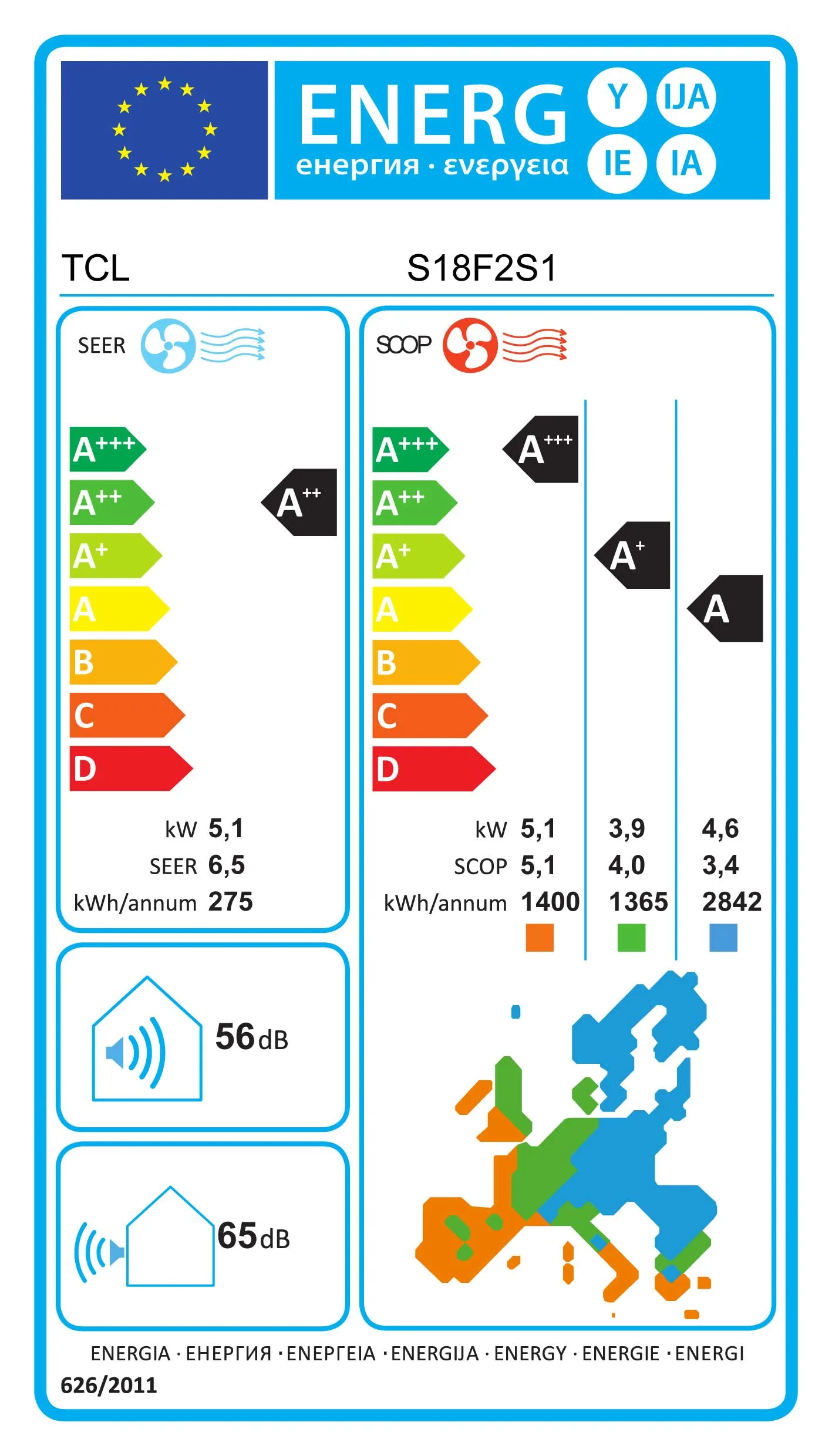

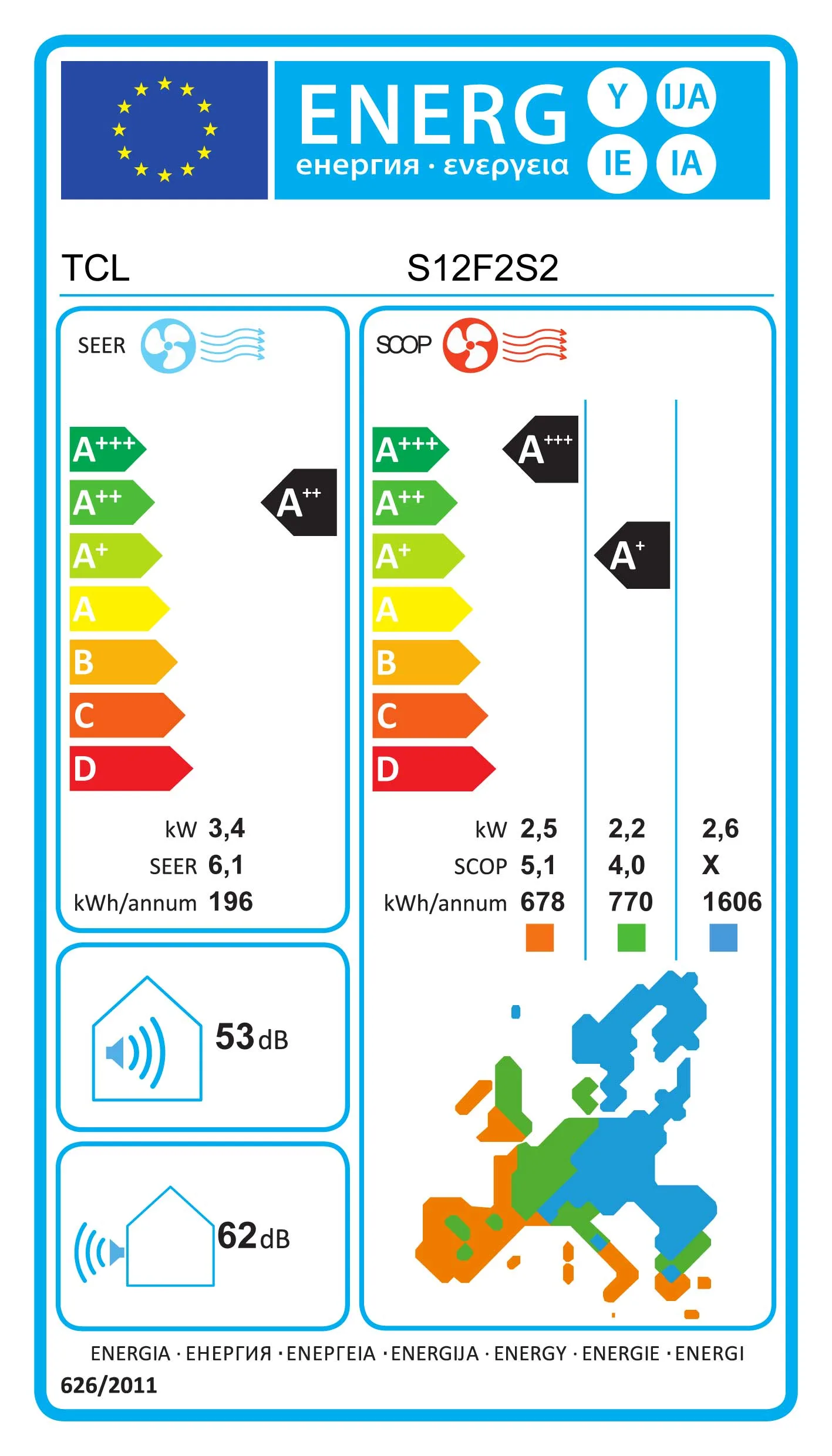

Energy efficiency rating
1*) Annual energy consumption (kWh/year). Based on standard test results. Actual consumption depends on usage and the location of the unit. 2*) Refrigerant leaks contribute to climate change.
Refrigerants with a lower GWP contribute less to global warming in the event of a leak than those with a higher GWP. This system contains a refrigerant with a GWP of 675. Therefore,
a leak of 1 kg of this refrigerant would have an impact on global warming 675 times greater than 1 kg of CO2 over a period of 100 years. Do not perform any work on the refrigeration circuit or disassemble the unit—always consult qualified personnel.
Installation
More space for piping and condensate pumps
Easy removal from the mounting plate
Convenient access for electrical connections
More space for connections and leak testing
Mounting bracket with spacers
Leak testing of connections is easily possible after installation. Up to 120 mm of clearance for working.
Maintenance
Leak test while installed
Thanks to the mounting plate with spacers, leak testing is easy even after installation.
Circuit Board Replacement
Electronics are easy to replace—quick access in the event of a malfunction or defect in the main circuit board of the indoor unit.
scope of delivery
TCL Elite Split Air Conditioner XA73
18,000 BTU Elite Outdoor Unit XA73
18,000 BTU Elite Indoor Unit XA73
remote control
User Manual
Copper tubing and mounting brackets are not included. These must be purchased separately.
Collection possible from our Karlsruhe site (Wikingerstraße 10), Mon–Fri 09:00–12:00 and 13:00–17:00
Manufacturer information (GPSR)
Manufacturer
TCL Air Conditioner (Zhongshan) Co., Ltd.
No. 59 Nantou Road West, Nantou Town
Zhongshan, Guangdong
China
Disposal of waste electrical and electronic equipment
Electrical appliances do not belong in household waste. You can return old appliances free of charge to municipal collection points or register them with us for take-back. The crossed-out wheelie bin means the appliance must be collected separately.
