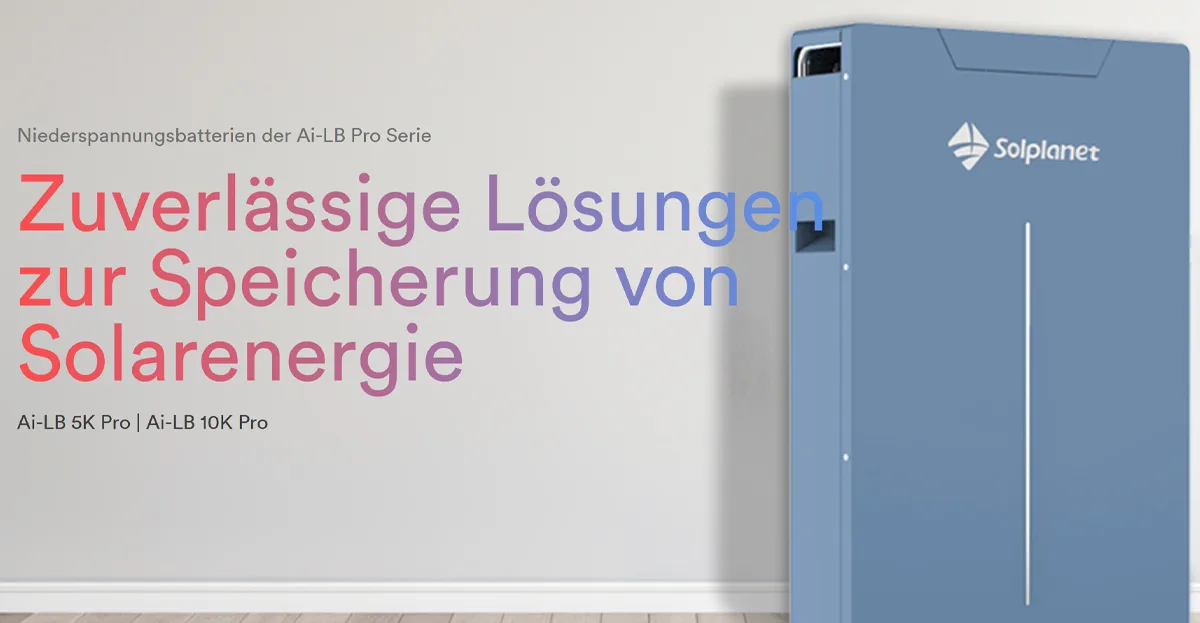

Solplanet Ai-LB 5K Pro 5kWh Battery Module - LBP00510051-01-00-60-0P

The Solplanet Ai-LB 5K Pro low-voltage battery offers 4.61 kWh of usable energy and a rated capacity of 100 Ah. With “IP65” protection, “LiFePO4” technology, and a comprehensive battery management system, it is safe and reliable. Ideal for self-consumption, peak load compensation, and various applications.
Product number:
The Solplanet Ai-LB 5K Pro low-voltage battery offers 4.61 kWh of usable energy and a rated capacity of 100 Ah. With “IP65” protection, “LiFePO4” technology, and a comprehensive battery management system, it is safe and reliable. Ideal for self-consumption, peak load compensation, and various applications.
Only with the operator declaration at checkout, otherwise plus 19 % VAT.
In stock Delivery by 22.11.2026
Shipping to Germany: €55.00 by freight forwarder · free pickup in Karlsruhe Shipping costs
Visa Visa
Mastercard Mastercard
Klarna Klarna
PayPal PayPal

2-year statutory warranty · Manufacturer warranty: 10 years according to the data sheet

Product number: 14530473
Collection possible from our Karlsruhe site (Wikingerstraße 10), Mon–Fri 09:00–12:00 and 13:00–17:00
5,120WhBattery Nominal Capacity
10yearsManufacturer warranty
6,000cyclesCharging Cycles
25.6kWhMaximum Storage Capacity per Tower

Solplanet Ai-LB 5K Pro Low-Voltage Battery

Solplanet Ai-LB 5K Pro

Rated Capacity

  • 100 Ah

Usable Energy

  • 4.61 kWh

Nominal Voltage

  • 51.2 V

Solplanet

The Solplanet Ai-LB 5K Pro low-voltage battery is an efficient and intelligent solution for various applications such as self-consumption, peak load compensation, and time-of-use rates. With a IP65-certified design, it is suitable for both indoor and outdoor use. Thanks to “LiFePO4” technology, the battery offers a high level of safety and reliability. It can be monitored via the Solplanet app and is scalable up to 160 kWh by connecting up to 32 units in parallel.

The Ai-LB 5K Pro supports a maximum discharge rate of 1 C and features a comprehensive battery management system (BMS) to protect the battery. The elegant design with a concealed cable connection allows for easy installation and mounting, both on the floor and on the wall.

Solplanet Ai-LB 5K Pro

Key Features

High Efficiency

The Ai-LB 5K Pro offers a rated energy capacity of 5.12 kWh and a usable energy capacity of 4.61 kWh, ensuring optimal energy storage and utilization. With a cycle efficiency of over 95% and a lifespan of 6,000 cycles, it is a reliable choice for long-term applications.

Safe and Reliable

The battery uses LFP cells and offers comprehensive protection through its battery management system. It is IP65-certified and suitable for outdoor use, with an operating temperature range of -5°C to 55°C when charging and -15°C to 55°C when discharging.

Intelligent and Flexible

The Ai-LB 5K Pro supports online monitoring via the Solplanet app and features numerous communication interfaces such as CAN, RS485, and Wi-Fi. It can be installed quickly and easily and offers flexible application options.

Comprehensive Warranties

The Solplanet Ai-LB 5K Pro low-voltage battery offers comprehensive warranties that underscore confidence in its quality and reliability. Customers benefit from maximum security and protection for their investment.

Technical Specifications

Specifications Solplanet Ai-LB 5K Pro
Cell Type LiFePO4
Rated Capacity 100 Ah
Usable Energy 4.61 kWh
Nominal battery voltage 51.2 V
Battery voltage range 44.8 V to 58.4 V
Max. charge/discharge current 60 A / 100 A
Rated charging/discharging power 3.07 kW
Max. charging/discharging power 3.07 kW / 5.12 kW
460 x 165 x 652 mm
Weight 50 kg
Protection rating IP65
Communication Interfaces CAN, RS485, Wi-Fi
Installation Floor/wall mounting

scope of delivery

Solplanet Ai-LB 5K Pro

  • Solplanet Ai-LB 5K Pro battery
  • Official Wi-Fi Dongle

Downloads

Technical Informations

Performance

Highlighted Features
Durable & Reliable Design, Smart Control & Mobile App, Easy Installation
Manufacturer warranty
10years
Battery Type
LFP (LiFePO4)
Battery Nominal Capacity
5,120Wh
Maximum Storage Capacity per Tower
25.6kWh
Usable Energy
4.61kWh
Charging Cycles
6,000cycles
Rated Voltage (V)
51.2V
Nominal Input Voltage (V)
51.2V
Nominal Output Voltage (V)
51.2V
Maximum Charge Power
3,070W
Maximum Discharge Power
5,120W
Rated Charge Power
3.07kW
Rated Discharge Power
3.07kW
Maximum Charge Current
60A
Maximum Discharge Current
100A
Operating Temperature
Charge: -5 ~ +55°C, Discharge: -15 ~ +55°C

Dimensions and weight

Net Weight
50kg
Width
460mm
Height/Length
652mm
Depth
165mm

Installation

Protection Degree (IP)
IP65
Communication
CAN, RS485, WLAN, Dry Contact

Further details

Manufacturer Product Code
LBP00510051-01-00-60-0P
