Hantech H-Pro 42K Multisplit Air Conditioner Wall-Mounted Unit 5 x 9000 BTU + Wi-Fi Set
Optional add-ons for this set
Not included in the scope of delivery
HANTECH Multisplit Air Conditioner: 5x 9,000 BTU 2.6 kW indoor units + 1x 42,000 BTU outdoor unit
This version includes 1 × Hantech 42K Multi-Outdoor Unit – HNT-M42VMTC/O and 5 × Hantech H-Pro 9K indoor unit – HNT-WP09VMCL/I (42,000 BTU/h cooling capacity).
TOP BRAND PRODUCT
Pre-charged with R32, sufficient for approximately ∼3 m of piping. Operation requires a 230V household power supply near the outdoor unit. The indoor unit is powered by an electrical cable connected to the outdoor unit. Thanks to the latest inverter technology with precise speed control, low power consumption, and continuous room temperature monitoring, a comfortable, consistent climate is guaranteed. Evacuation of the lines by an HVAC technician is mandatory for long-term, trouble-free operation.
DIMENSIONS
- Indoor unit 790×275×192
mm Weight 8.5 kg - Outdoor unit 835×605×360
mm Weight 34 kg
THREAD
- Discharge
line 1/4" - Suction
line 3/8"
ROOM SIZES
- Minimum
5 m² and up - Maximum
up to 30 m²
Technical Specifications

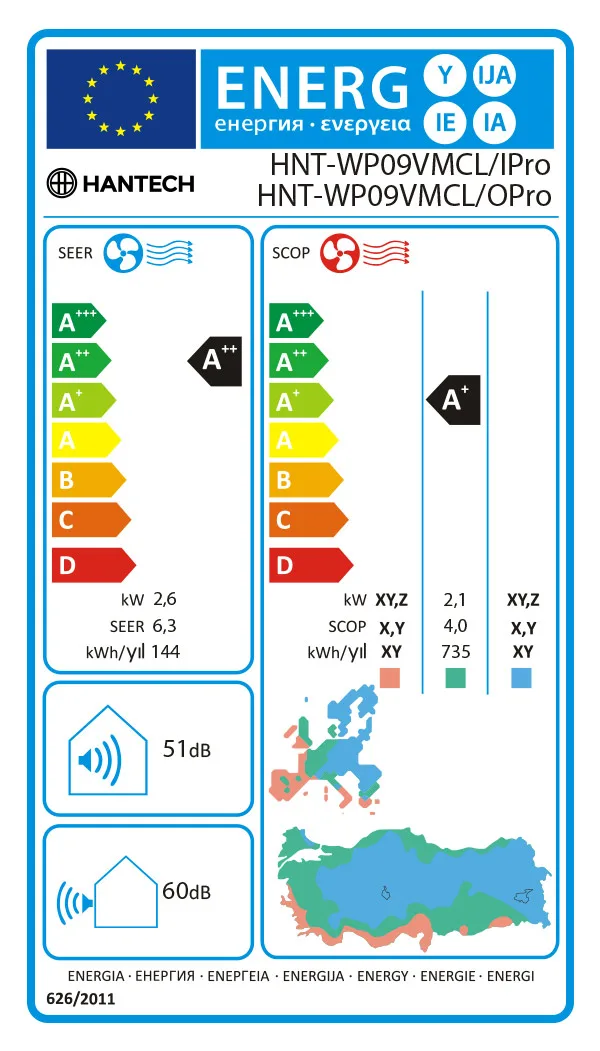

IN ACCORDANCE WITH EU REGULATION 626/2011
| Model | H-PRO | ||||||
| Model Number | HNT-WP09VMCL | HNT-WP12VMCL | HNT-WP18VMCL | HNT-WP24VMCL | |||
| Capacity | BTU | 9,000 | 12,000 | 18,000 | 24,000 | ||
| Design Load (Cooling Mode) | kW | 2.6 | 3.5 | 5.1 | 6.8 | ||
| Design load for heating operation | kW | 2.6 | 3.5 | 5.2 | 7.0 | ||
| Energy consumption | W | 35 | 35 | 52 | 70 | ||
| Model number of outdoor unit | HNT-M18VMTC | HNT-M27VMTC | HNT-M32VMTC | HNT-M42VMTC | |||
| BTU | 18,000 | 27,000 | 32,000 | 42,000 | |||
| Energy Efficiency Class (Cooling) | A++ | A++ | A++ | A++ | |||
| Energy Efficiency Class (Heating) | A+ | A+ | A+ | A+ | |||
| Coefficient of Performance (COP) in Cooling Mode | SEER | 6.2 | 6.1 | 6.1 | 6.1 | ||
| Coefficient of Performance (COP) in cooling mode | SCOP | 4.0 | 4.0 | 4.0 | 4.0 | ||
| Electricity consumption 1*) Cooling | kWh/year | 294 | 453 | 534 | 700 | ||
| Electricity consumption 1*) Heating | kWh/year | 1,540 | 2,030 | 2,555 | 3,325 | ||
| Heating season (average) | °C | -15 -53 |
|
| -15–53 | ||
| Max. sound power level | dB(A) re1 pW | 65 | 68 | 70 | 70 | ||
| GWP 2*) | R32 | R32 | R32 | R32 | |||
| Connections / Threads | Inches | 1/4" | 1/4" | 1/4" | 1/4" | ||
| Power supply | 220-240V~/50Hz/1Ph | 220-240V~/50Hz/1Ph | 220-240V~/50Hz/1Ph | 220–240 V AC /50Hz/1Ph | |||
| Cooling Capacity | Watts | 5,200 | 7,900 | 9,300 | 12,200 | ||
| Heating Power | Watts | 4,400 | 5,800 | 7,300 | 9,500 | ||
| Product Dimensions (Interior) | WxHxD | 790×275×192 mm | 790×275×192 mm | 790×275×192 mm | 790×275×192 mm | ||
| Product External Dimensions | WxHxD | 835x605x360 mm | 968x655x375 mm | 990x910x340 mm | 990 x 910 x 340 mm | ||
| Product Weight (Internal) | kg | 8 | 8 | 11 | 14 | ||
| Product Weight (External) | kg | 34 | 46 | 68 | 73 | ||
1*) Annual energy consumption (kWh/year). Based on standard test results. Actual consumption depends on usage and the appliance’s location. 2*) Refrigerant leaks contribute to climate change. Refrigerants with a lower GWP (GWP) contribute less to global warming in the event of a leak than those with a higher GWP. This unit contains a refrigerant with a GWP of 675. Thus, a leak of 1 kg of this refrigerant would have an impact on global warming 675 times greater than 1 kg of CO2 over a period of 100 years. Do not perform any work on the refrigeration circuit or disassemble the unit—always consult qualified personnel.
HANTECH FEATURES
GOLD COATING
The HANTECH™ gold coating made of nano-titanium oxide—a patented evaporator coating—is self-cleaning, inhibits bacterial growth, and offers improved corrosion resistance, ensuring that energy efficiency remains virtually unchanged even after 8 years. Organic pollutants are broken down and odors are neutralized.
Wi-Fi
APP Control
Conveniently operate the air conditioner—including all available functions and settings—while on the go. For example, you can pre-cool the room a few minutes before arriving to ensure a comfortably tempered space upon entry. In addition to the infrared remote control, the unit can also be controlled via your home Wi-Fi network without requiring an internet connection.
New Design
MODES
Turbo Mode
Maximum power and air circulation reduce the time it takes to reach the desired temperature
Supersilence
Minimal fan noise ensures whisper-quiet operation and peaceful nights
Self-Cleaning
How It Works
1. Freezing
Freeze the heat exchanger to trap dirt particles
2. Defrosting
It is defrosted to loosen the dirt and rinse it away
3. Drying
Preparation and drying of the heat exchanger
4. High-Temperature
Harmful microorganisms are killed for 30 minutes at 56°C
Special Features
I-FEEL
Temperature is measured on the remote control
TIMER
24-hour on/off timer
HEALTH
Ionization of indoor air
SLEEP
Prevents the room from cooling down overnight
MOLD
Drying prevents bacterial growth
8°C HEAT
Frost protection—rooms always stay above 8°C
DISPLAY
The LED display can be turned off if needed

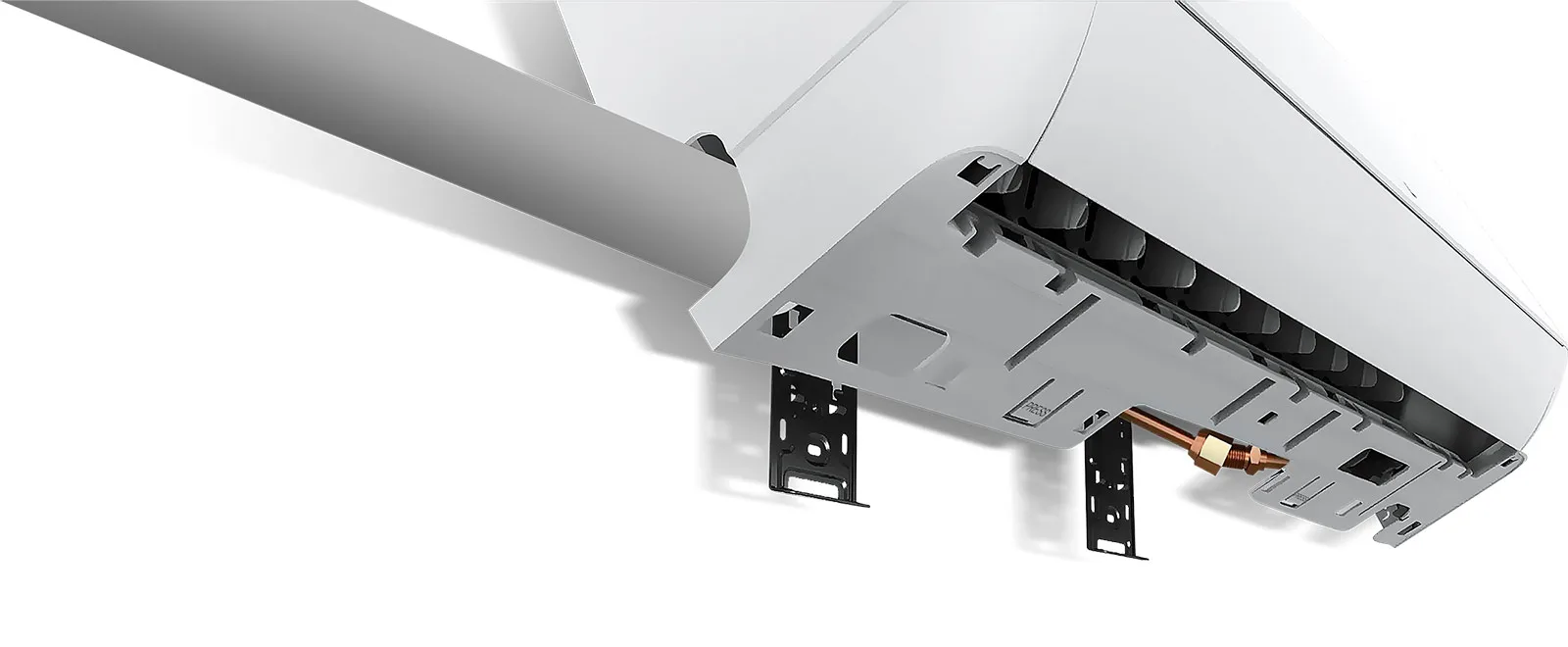

Installation
More space for piping and condensate pumps
Easy to detach from the mounting plate
Convenient access for electrical connections
More space for connection and leak testing
Mounting bracket with spacers

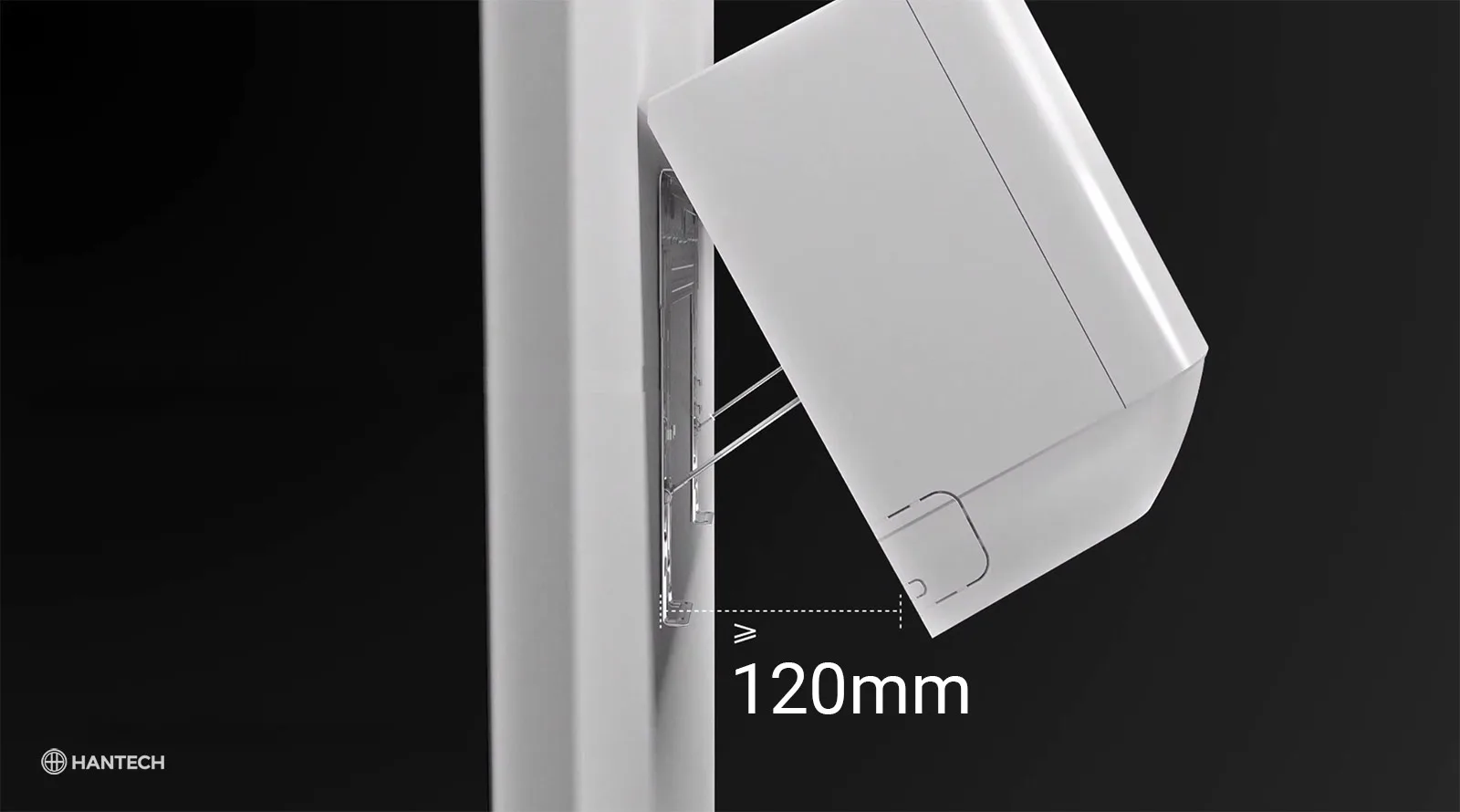

Leak testing of connections is easily possible after installation. Up to 120 mm of clearance for working
Maintenance
Leak test while installed
Thanks to the mounting plate with spacers, leak testing is convenient even after installation
Circuit board replacement
Electronics are easy to replace—quick access in the event of a malfunction or defect in the main circuit board inside the indoor unit
FUTURE-PROOF, ECO-FRIENDLY
R32
Why switch to R32?
According to EU Regulation CE 517/2014, R R410A will be phased out and replaced with non-fluorinated gases (F-gases) such as R R32 for environmental reasons. Smaller charge quantities are required, and these gases can be more easily recycled and reused.
Environmentally Friendly
Positive effects include no impact on the ozone layer and a reduced contribution to global warming. A transition period for R410A will be in effect starting in 2017—as of 2025, imports for systems with a charge of less than 3 kg will be prohibited. As a simple refrigerant, rather than a compound, R32 can be easily recycled and reused. This makes it environmentally friendly
Advantages over R410A
- ∼70% lower global warming potential
- 0% ozone impact
- Future-proof
- Lower impact on global warming
Vision for the Future
Today, protecting the environment is one of society’s most important challenges. Both end users and manufacturers are doing their best to protect the environment as much as they can. As one of the pioneers in air conditioning manufacturing, HANTECH is committed to R32.
Effort for HVAC Technicians
Since R32 does not require any extra effort and is as easy to install as R410A, there will be no additional costs. On the contrary, R32 is more cost-effective because less refrigerant is needed to achieve the same cooling capacity.
scope of delivery
H-PRO
- 1x 42,000 BTU outdoor unit
- 5x 9,000 BTU indoor units with remote control
Product Video
Technical Data
Manufacturer information (GPSR)
Disposal of waste electrical and electronic equipment
Electrical appliances do not belong in household waste. You can return old appliances free of charge to municipal collection points or register them with us for take-back. The crossed-out wheelie bin means the appliance must be collected separately.
