TCL T-Pro 12K Split Air Conditioner + 5m Pipe Set -TAC-12CHSD/TPG11-5m
TCL TPro Split Air Conditioner 12,000 BTU 3.4 kW White
TOP BRAND PRODUCT
Pre-charged with R32 for approx. ∼5m of piping. Operation requires a 230V household power supply near the outdoor unit. The indoor unit is powered by an electrical cable connected to the outdoor unit. Thanks to the latest inverter technology with precise speed control, low power consumption, and continuous room temperature monitoring, a comfortable, consistent climate is guaranteed. Evacuation of the lines by an HVAC technician is mandatory for long-term, trouble-free operation.
9,000 BTU
- Room size
up to 26 m² - Internal Dimensions
790×275×192 mm
12,000 BTU
- Room size
up to 35 m² - Internal Dimensions
790×275×192 mm
18,000 BTU
- Room size
up to 52 m² - Internal Dimensions
920×306×195 mm
24,000 BTU
- Room size
up to 70 m² - Indoor Dimensions
1,100 × 333 × 222 mm
TCL Split Air Conditioner
TCL Split Air Conditioner: Premium Climate Control for Your Home
Experience the quality and innovation of the TCL brand with the TCL split air conditioner. This versatile unit offers four modes—cooling, heating, recirculation, and dehumidification—to ensure the perfect indoor climate year-round. It’s conveniently controlled via an app and is smart home-compatible, so you can operate the air conditioner from anywhere.
TCL stands for reliability, backed by a 5-year warranty. The self-cleaning function keeps the unit hygienic and efficient. Turbo mode lets you quickly reach the desired temperature, while Super Silent mode ensures whisper-quiet operation. The eco-friendly R32 refrigerant guarantees sustainable cooling.
Additional features such as I-Feel, Timer, Health, Sleep, and Mildew offer customized settings for your comfort and health. Choose TCL and enjoy a first-class air conditioning solution.

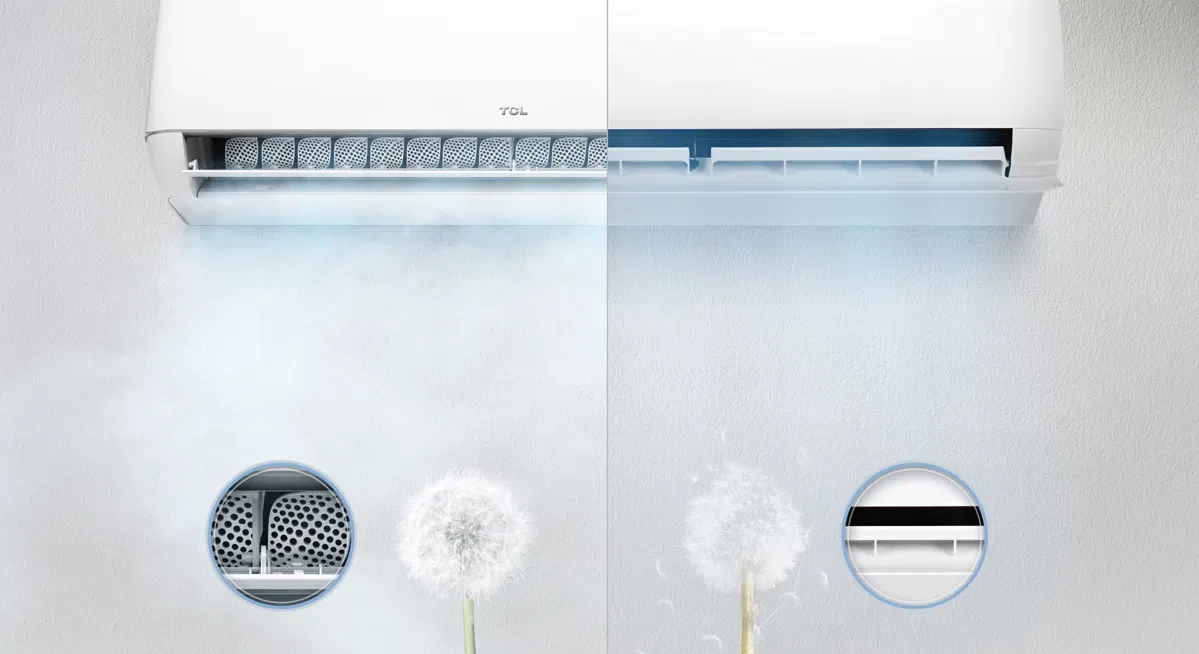

Cooling Reimagined
Enjoy comfortable cooling with Gentle Breeze mode. Up to 1,422 micro-holes create a soft, laminar airflow. Avoid harsh, direct cold drafts and enjoy exceptional refreshment.
Smart Home
Smart Air Conditioning with TCL: Smart Home Integration
The TCL split air conditioner brings state-of-the-art smart home technology into your home. With smart home integration, you can control your indoor climate conveniently and intuitively, no matter where you are.
Remote Control via App: Using the user-friendly app, you can control the air conditioner anytime, from anywhere. Adjust the temperature, change the operating modes, or turn the air conditioner on and off—all with just a few taps.
Voice Control: The TCL split air conditioner is compatible with popular voice assistants such as Amazon Alexa and Google Assistant. Simply say the command you want and enjoy the convenience of voice control.
Automation: Create custom scenarios and automations. Have the air conditioner turn on automatically when you get home, or set a schedule to optimize energy consumption.
Real-Time Monitoring: Keep an eye on your indoor climate. The app offers real-time monitoring and reports on temperature, humidity, and energy consumption, so you’re always in control of your indoor climate.
Smart Cooling & Heating
Shower-Style Cooling
- An upward airflow descends from the ceiling, providing intense cooling.
Heating with an Upward Airflow
- A warm, humidity-optimized airflow rises evenly from the floor.
Fast Cooling & Heating
The TCL high-frequency compressor delivers faster comfort: The air is cooled to 18℃ in just 30 seconds or heated to 40℃ in just 60 seconds*. Turn it on, set the temperature, and enjoy faster refreshment.
Eco Mode
With TCL Eco Mode, you can cool or heat more efficiently. It reduces energy consumption, saves on electricity bills, and maintains a narrow temperature range.
Smart Inverter
With the TCL Smart Inverter, you save money and enjoy energy efficiency. With up to 60% energy savings, the Smart Inverter helps reach the set temperature faster, cools the air outlet to 18 °C in 30 seconds and heats it to 40 °C in 60 seconds, and maintains the temperature within ±1 °C.
I FEEL
I FEEL is a temperature sensor built into the TCL remote control. When activated, this mode maintains the selected temperature where the remote control is located. I FEEL enables more precise temperature control wherever you are in the room as long as the TCL remote control is nearby.
3D Airflow
TCL’s 3D airflow features automatic horizontal and vertical swiveling. It provides a more comfortable airflow, avoids direct airflow on the skin, and distributes the airflow evenly to everyone around you.
MODES
Cooling
Efficient cooling for hot days. Enjoy a pleasantly cool indoor climate with minimal energy consumption.
Heat
Fast and reliable heat for cold days. Create a cozy atmosphere in your home.
Circulating Air
Optimal air circulation for even temperature distribution. Improves indoor air quality and comfort.
Dehumidification
Effectively reduces humidity for a healthier indoor environment. Prevents mold growth and improves living comfort.
Turbo Mode
Maximum power and air circulation shorten the time it takes to reach the desired temperature
SuperSilence
Minimal fan noise ensures whisper-quiet operation and peaceful nights
Auto Cleaning
From defrosting, drying, to sterilizing. Deep Clean uses water molecules in the air to remove dust, dirt, and other contaminants. The automatic program is efficient, simple, and an excellent way to enjoy clean air.
Manual Cleaning
The TCL air conditioner was designed with an intuitive cleaning concept. The four main components—filter, fins, plate, and damper—can be easily disassembled for manual cleaning and then simply reassembled
Special Features
I-FEEL
Temperature is measured by the remote control.
TIMER
24-hour on/off timer.
HEALTH
Ionization of the room air.
SLEEP
Prevents the room from cooling down overnight.
MOLD
Drying prevents bacterial growth.
8°C HEAT
Frost protection—rooms remain above 8°C at all times.
DISPLAY
The LED display can be turned off if desired.
Technical Specifications
| IN ACCORDANCE WITH EU REGULATION 626/2011 | TAC-09CHSD/TPG11 | TAC-12CHSD/TPG11 | TAC-18CHSD/TPG11 | TAC-24CHSD/TPG11 |
|---|---|---|---|---|
| Technical Specifications | ||||
| BTU | 9,000 | 12,000 | 18,000 | 24,000 |
| Design load, cooling mode | 2.1 kW | 2.4 kW | 3.8 kW | 5.7 kW |
| Design load for heating mode | 2.1 kW | 2.4 kW | 3.8 kW | 5.7 kW |
| Energy efficiency class (cooling) | A++ | A++ | A++ | A++ |
| Energy efficiency class for heating | A+ | A+ | A+ | A+ |
| SEER () | 6.3 | 6.1 | 6.3 | 6.5 |
| 4.0 | 4.0 | 4.0 | 4.0 | |
| Electricity consumption for cooling | 144 kWh/year 1*) | 195 kWh/year 1*) | 293 kWh/year 1*) | 366 kWh/year 1*) |
| Electricity consumption for heating | 735 kWh/year 1*) | 840 kWh/year 1*) | 1,330 kWh/year 1*) | 1,995 kWh/year 1*) |
| Heating season (average) | up to -10°C | up to -10°C | up to -10°C | down to -10°C |
| sound power level | max. 60 dB(A) re1 pW | max. 60 dB(A) re1 pW | max. 60 dB(A) re1 pW | max. 60 dB(A) re1 pW |
| Circulation | ||||
| refrigerant (GWP) | R32 (675) 2*) | R32 (675) 2*) | R32 (675) 2*) | R32 (675) 2*) |
| Connections / Threads | 1/4" 3/8" | 1/4" 3/8" | 1/4" 3/8" | 1/4" 1/2" |
| Sound pressure | ||||
| Indoor | from 22 dB(A) | from 22 dB(A) | from 27 dB(A) | 30 dB(A) and up |
| Outdoors | 50 dB(A) and above | 50 dB(A) and above | 55 dB(A) and above | 57 dB(A) and above |
| Power consumption | ||||
| Power supply | 220–240 V AC /50Hz/1P | 220–240 V~ /50Hz/1P | 220–240 V~/50Hz/1P | 220–240 V AC /50Hz/1P |
| Power Consumption (Cooling) | 240–1,380 watts | 290–1,500 watts | 330–2,350 watts | 410–2,800 watts |
| Power consumption (heating) | 240–1,550 watts | 290–1,730 watts | 340–2,550 watts | 420–3,000 watts |
| Product Dimensions | ||||
| Internal Dimensions (W x H x D) | 790×275×192 mm | 790×275×192 mm | 920×306×195 mm | 1100×333×222 mm |
| External Dimensions (W x H x D) | 777×498×290 mm | 777 × 498 × 290 mm | 853×602×349 mm | 920×699×380 mm |
| Internal weight | 8.5 kg | 8.5 kg | 10.5 kg | 14 kg |
| Weight (external) | 22.5 kg | 23 kg | 31 kg | 38.5 kg |

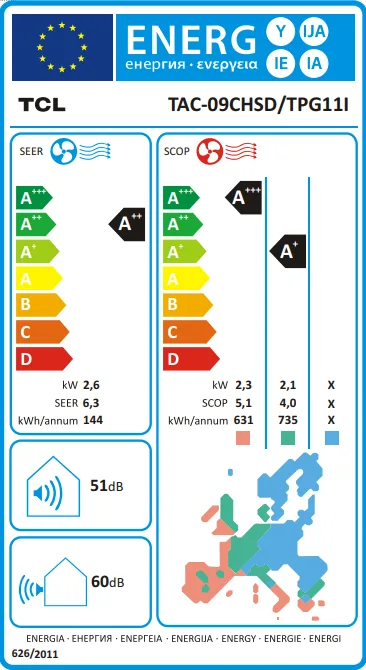

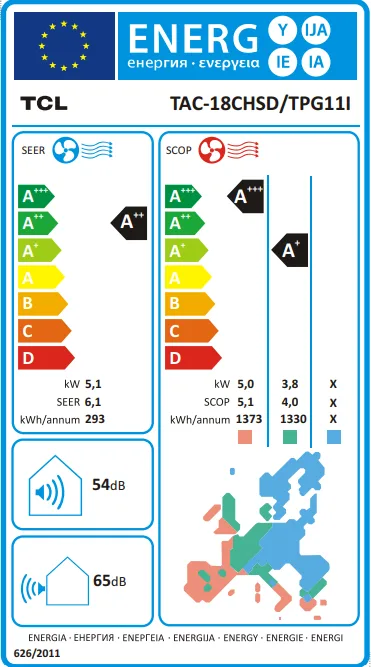

| Energy Label |  |  |  |  |
1*) Annual energy consumption (kWh/year). Based on standard test results. Actual consumption depends on usage and the appliance’s location. 2*) Refrigerant leaks contribute to climate change. Refrigerants with a lower GWP (GWP) contribute less to global warming in the event of a leak than those with a higher GWP (GWP). This unit contains a refrigerant with a GWP of 675. Thus, a leak of 1 kg of this refrigerant would have an impact on global warming 675 times greater than 1 kg of CO2 over a period of 100 years. Do not perform any work on the refrigeration circuit or disassemble the unit—always consult qualified personnel.
Installation
More space for piping and condensate pumps
Easy removal from the mounting plate
Convenient access for electrical connections
More space for connections and leak testing
Mounting bracket with spacers
Leak testing of connections is easily possible after installation. Up to 120 mm of clearance for working.
Maintenance
Leak test while installed
Thanks to the mounting plate with spacers, leak testing is easy even after installation.
Circuit Board Replacement
Electronics are easy to replace—quick access in the event of a malfunction or defect in the main circuit board inside the indoor unit.
FUTURE-PROOF, ECO-FRIENDLY
R32
Why switch to R32?
According to EU Regulation CE 517/2014, R410A is being phased out and replaced with non-fluorinated gases (F-gases) such as R32 for environmental reasons. Smaller charge quantities are required, and the gas can be more easily recycled and reused.
Environmentally Friendly
Positive effects include no impact on the ozone layer and a reduced contribution to global warming. A transition period for R410A will be in effect starting in 2017—as of 2025, imports for systems with a charge of less than 3 kg will be prohibited. As a simple refrigerant—not a compound—R32 can be easily recycled and reused. This makes it environmentally friendly.
Advantages over R410A
- ∼70% lower global warming potential
- 0% ozone impact
- Future-proof
- Lower global warming potential
Vision for the Future
Today, protecting the environment is one of society’s most important challenges. Both end users and manufacturers are doing their best to protect the environment as much as they can. As one of the pioneers in air conditioning manufacturing, TCL is committed to “R32.”
Effort for HVAC Technicians
Since R32 does not require any extra effort and is as easy to install as R410A, there will be no additional costs. On the contrary, R32 is more cost-effective because less refrigerant is needed to achieve the same cooling capacity.
scope of delivery
TCL SPLIT 2024
- TCL TAC-12CHSDTPG11/O outdoor unit
- TCL TAC-12CHSDTPG11/I Indoor Unit
- 4x vibration dampers / rubber pads for outdoor unit
- Electrical connection cable (power cord), 1.5 m
- remote control
- Condensate drain hose
- 1x copper pipe 1/4, 5 m
- 1x 3/8 copper pipe, 5 m
- Outdoor unit pre-filled for up to 5 m of piping
Note: The scope of delivery does not include mounting brackets.
Technical Data
Manufacturer information (GPSR)
Manufacturer
TCL Air Conditioner (Zhongshan) Co., Ltd.
No. 59 Nantou Road West, Nantou Town
Zhongshan, Guangdong
China
