Solplanet ASW 05kH-T2 Hybrid Inverter - OE5000-60-04-AYP
Related:
Frequently bought together with this product
Solplanet ASW 05kH-T2 3-Phase hybrid inverter
Max. DC input power
- 7,500 watts
AC output power
- 5,000 watts
Specified voltage range
- 60 VDC – 560 VDC
Solplanet

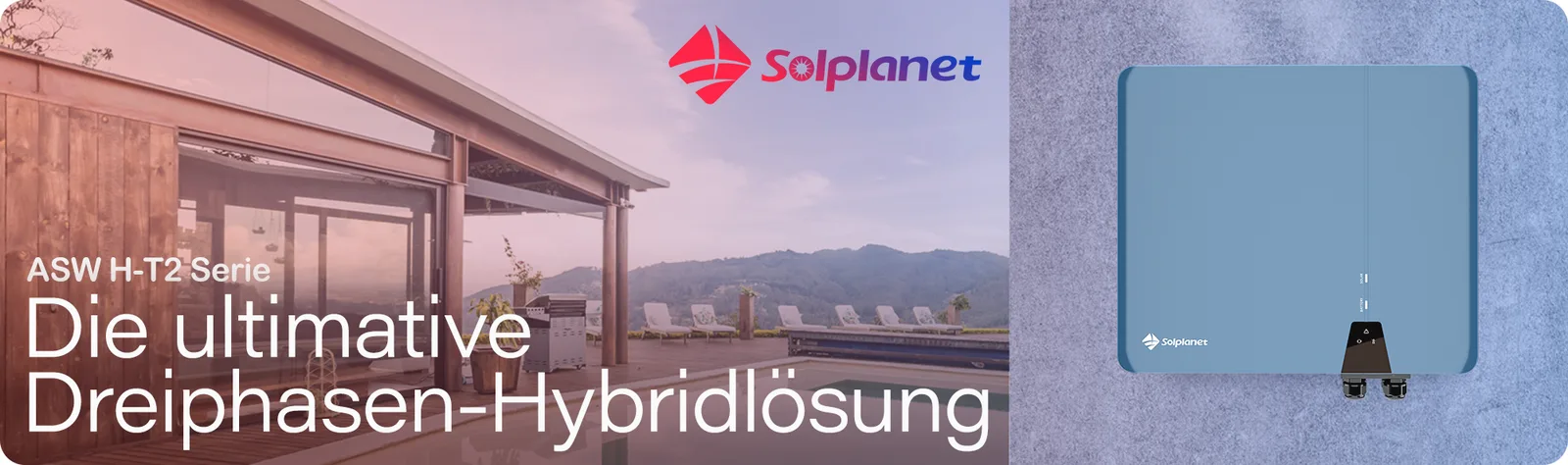

The Solplanet ASW 05kH-T2 3-phase hybrid inverter is an efficient and versatile solution for residential PV systems. With a IP66-certified design, it is ideally suited for outdoor use. Thanks to its two independent MPP trackers and a maximum DC input power of 7,500 watts, it can ensure high energy yield even in the presence of shade or under unfavorable weather conditions.
The ASW 05kH-T2 is equipped with an intelligent shading management system and enables round-the-clock system monitoring. Installation is quick and easy thanks to the tool-free Phoenix Contact DC connectors. It can be configured and monitored via the Solplanet app on iPhone or Android.
Special Features
High Yields
The ASW 05kH-T2 offers a maximum PV input power of 7,500 W and a DC/AC-ratio of 150%, ensuring optimal energy generation. The efficiency of the MPPT is an impressive 99.9%, while the maximum inverter efficiency is 98.0%.
Scalable and Flexible
The inverter features two MPP trackers and a maximum input current of 20 A per string, making it ideal for bifacial and large PV modules. Its IP66-certified design and tool-free Phoenix Contact DC connectors enable quick and easy installation.
Intelligent and Reliable
The inverter supports Wi-Fi and LAN remote monitoring, as well as smart operating modes and customizable system settings. The integrated dust protection kit safeguards the inverter in harsh environments.
Comprehensive Warranties
The Solplanet ASW 05kH-T2 3-Phase hybrid inverter comes with a 10-year warranty, underscoring confidence in its quality and reliability. Customers benefit from maximum security and protection for their investment.
Technical Specifications
| Specifications | Solplanet ASW 05kH-T2 |
|---|---|
| Max. DC Input Power | 7,500 W |
| Max. input voltage | 1,100 V |
| MPP voltage range | 150 V – 950 V |
| Number of MPP trackers | 2 |
| Max. input current per MPPT | 20 A |
| Rated AC power | 5,000 W |
| Max. AC power | 5,500 VA |
| Max. output current | 8.0 A |
| efficiency | 98.0% |
| Dimensions | 545 x 465 x 205 mm |
| Weight | 24.5 kg |
| Protection Class | IP66 |
| Communication Interfaces | Wi-Fi, LAN |
| Parallel operation | Yes, up to 5 units |
scope of delivery
Solplanet ASW 05kH-T2
- Solplanet ASW 05kH-T2 3-phase hybrid inverter
- Official Wi-Fi dongle (optional)
