TCL BreezeIN 32K Multisplit Air Conditioner Wall-Mounted Unit 4 x 9000 BTU + Wi-Fi Kit

TCL BreezeIN 4 x 9,000 Btu (2.6 kW) Multi-Split Air Conditioner

This version includes 1 × TCL 32K Multi Outdoor Unit - FMA-32I4HD/DVO and 4 × TCL BreezeIN 9K Multi Indoor Unit - FMA-09CHSD/TPH11I (32,000 BTU/h cooling capacity).

TCL BreezeIN Multi-Split Air Conditioner

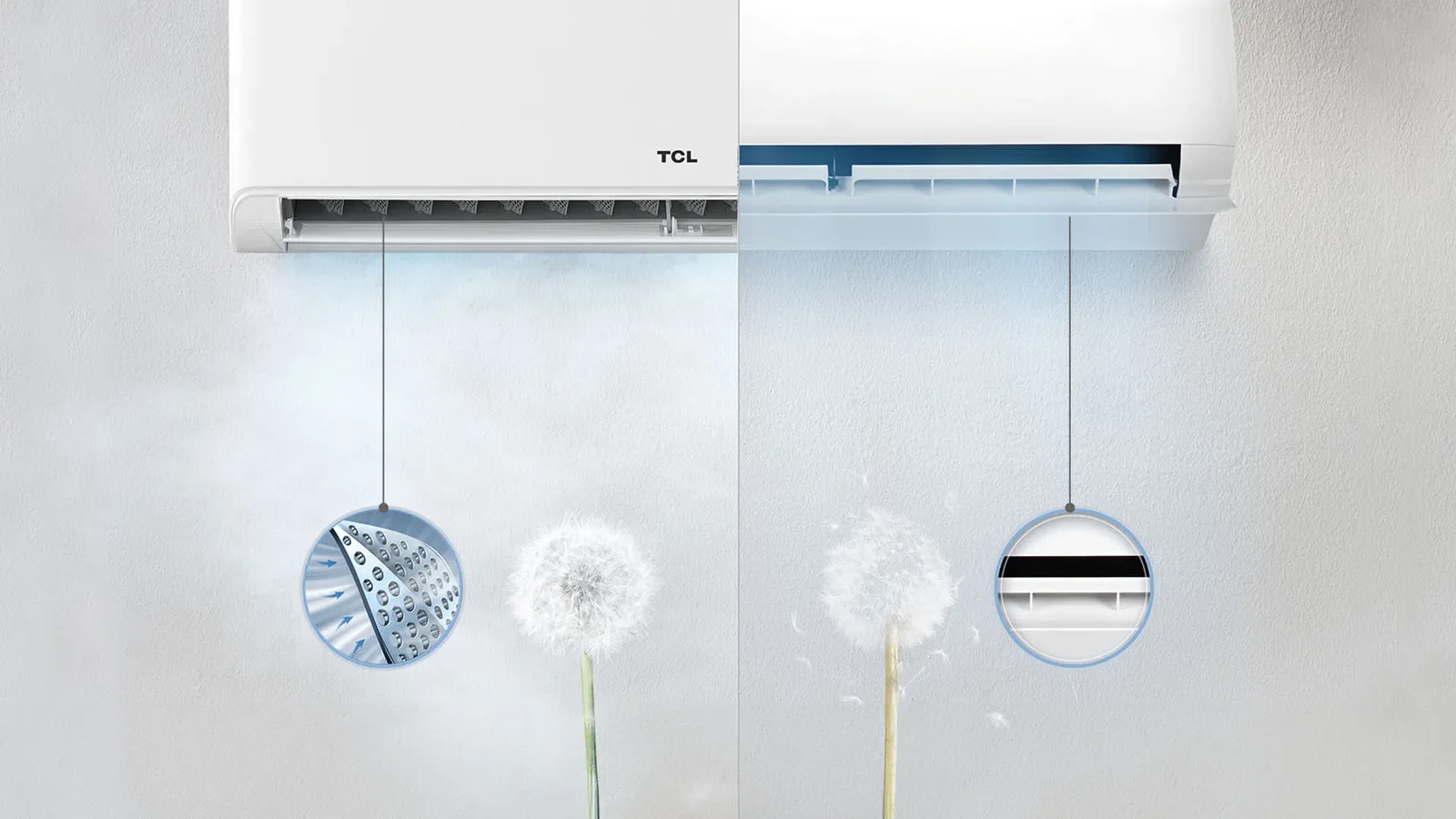

TCL BreezeIN: Innovative Premium Air Conditioning for Your Home

With the TCL BreezeIN split air conditioner, you’ll experience state-of-the-art technology for optimal comfort in every season. Whether in cooling, heating, recirculation, or dehumidification mode—the BreezeIN flexibly adapts to your needs. Thanks to smart control via the TCL Home app or voice assistants like Google Assistant and Amazon Alexa, you have full control over your indoor climate anytime, anywhere.

The combination of the innovative Gentle Breeze mode and precise Smart Airflow technology ensures a pleasant, draft-free distribution of air. Over 1,422 micro-holes create a soft, natural airflow that ensures maximum comfort. This is supported by powerful Smart Inverter technology, which not only boosts efficiency but also maintains a constant room temperature while reducing energy consumption.

With features like Turbo Mode for reaching the desired temperature especially quickly and the “I Feel” function for temperature-based control right where you are, you’ll experience personalized adjustment tailored to your well-being. The Auto-Clean function with a cleaning reminder ensures hygienic freshness in the room and extends the unit’s service life.

Thanks to its high-quality craftsmanship and durable design, you’ll enjoy not only comfort but also peace of mind—backed by a comprehensive 5-year warranty from TCL. The R32-refrigerant used offers an environmentally friendly and future-proof alternative for sustainable air conditioning.

Experience premium quality, smart controls, and maximum energy efficiency with the TCL BreezeIN Split Air Conditioner—the perfect choice for a modern, comfortable home.

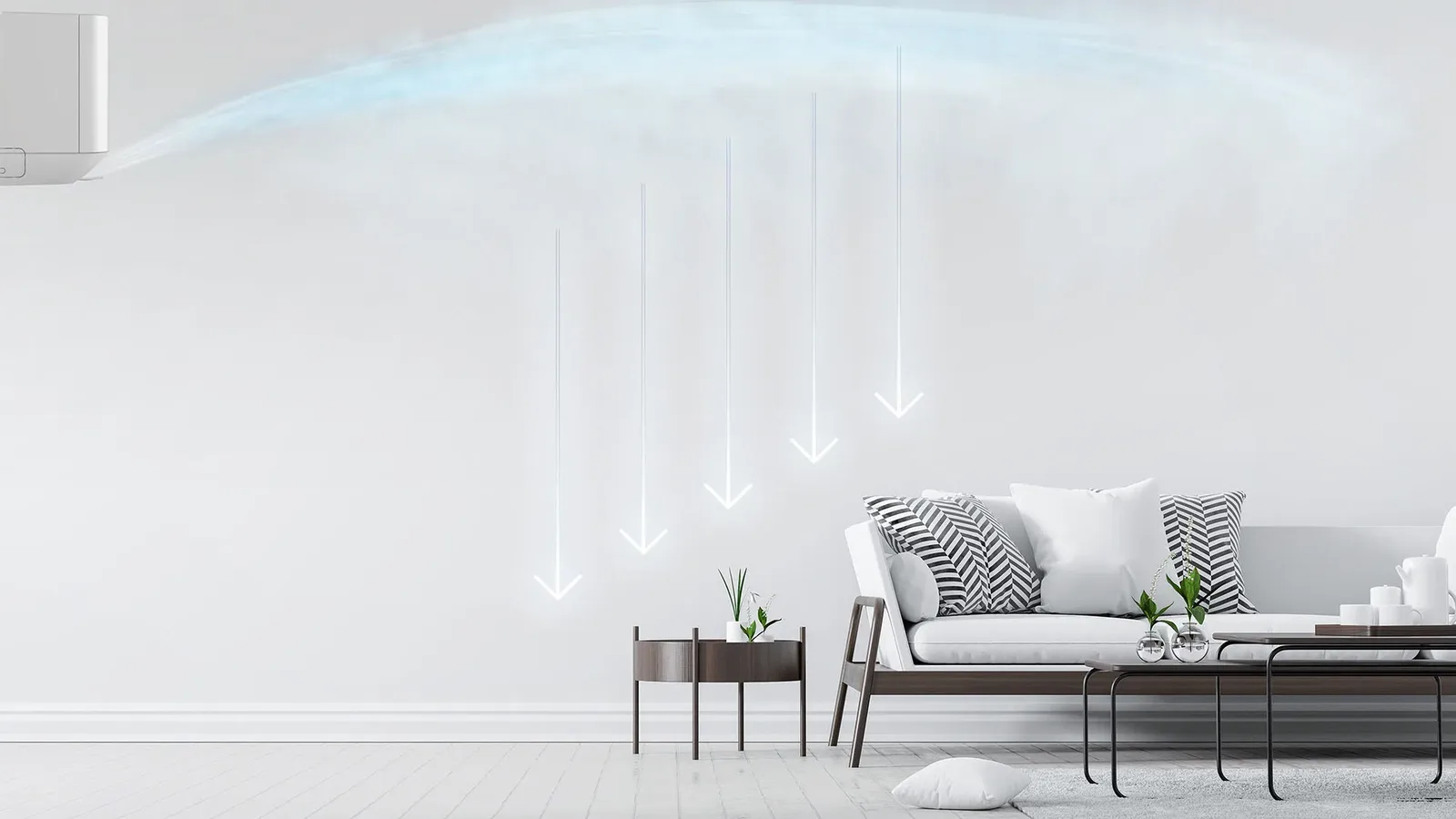

Cooling from top to bottom

Perfect climate control: Cooling from above for even temperatures

The TCL BreezeIN split air conditioner utilizes a natural physical principle: cool air sinks downward. That’s why the innovative cooling system starts specifically from the ceiling, ensuring optimal distribution of cool air throughout the entire room.

The upward airflow ensures a consistent temperature from floor to ceiling. This eliminates unpleasant cold spots and uneven room temperatures—instead, you’ll enjoy a harmonious, perfectly tempered environment at all times.

With this intelligent cooling technology, the TCL BreezeIN provides efficient, gentle, and exceptionally comfortable cooling—ideal for hot summer days and a new level of indoor comfort.

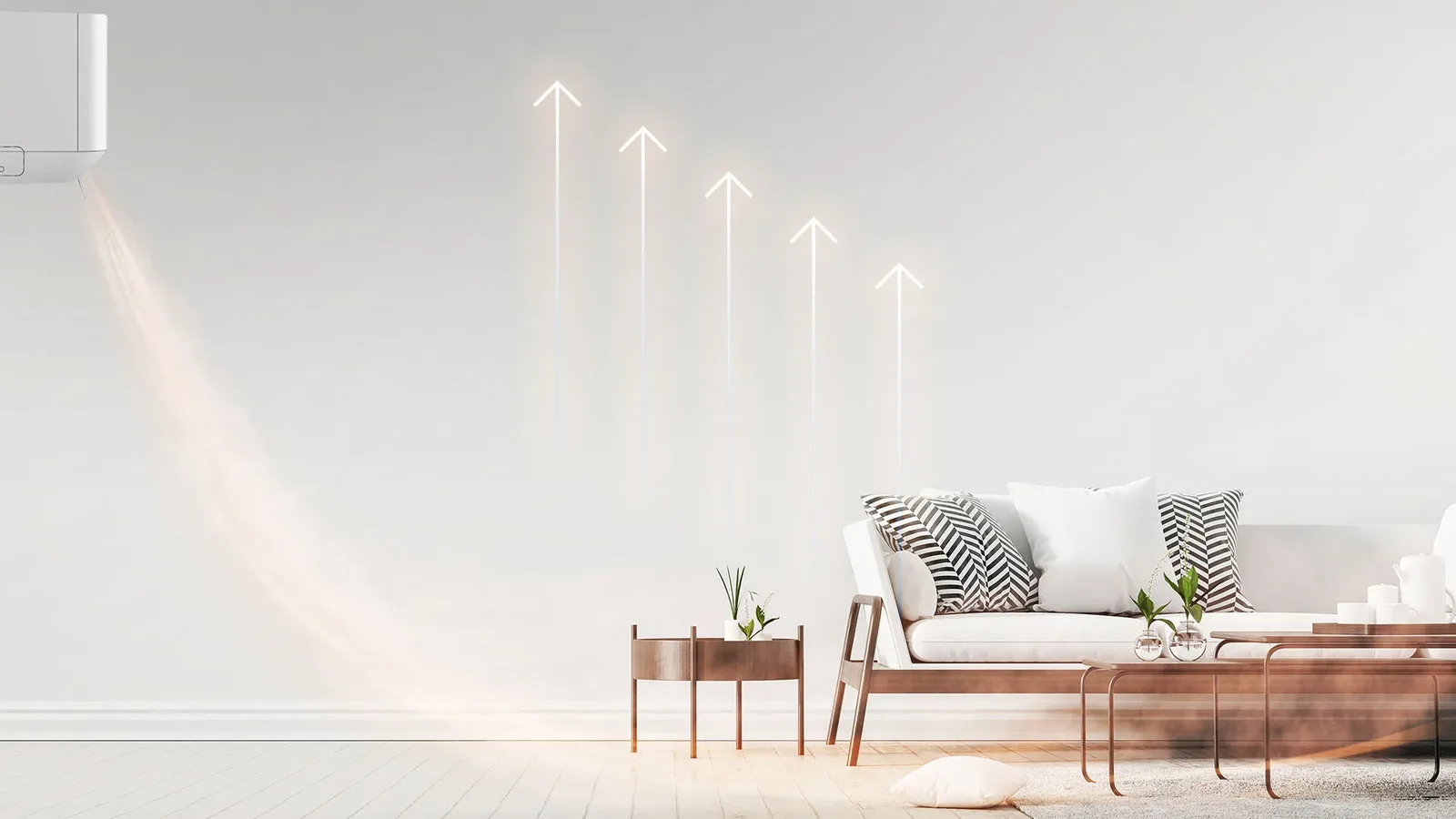

Smart Heating from Bottom to Top

Optimal heat distribution: Heating from the bottom for maximum efficiency

The TCL BreezeIN split air conditioner utilizes the natural tendency of warm air to rise. In heating mode, warm air is strategically distributed in the lower part of the room and then rises evenly. This creates a pleasant, constant warmth from floor to ceiling.

Thanks to this sophisticated airflow design, the areas where you spend your time warm up faster and more efficiently. The entire room benefits from optimal heat distribution, without cold spots or uncomfortable temperature differences.

With the TCL BreezeIN’s intelligent heating technology, you’ll enjoy maximum comfort on cold days while saving energy—for a cozy home that adapts perfectly to your needs.

Smart Inverter Technology

Maximum Performance Meets Ultimate Energy Efficiency

The TCL BreezeIN split air conditioner uses state-of-the-art inverter technology to intelligently adapt to your individual needs. By continuously adjusting the compressor’s speed, the desired temperature is reached faster, maintained precisely, and energy consumption is significantly reduced.

Instead of constantly cycling on and off, inverter technology operates continuously and efficiently. The result: a more consistent room temperature, less energy loss, and significantly quieter operation. In addition, the Smart Inverter control ensures that the air conditioner responds particularly quickly when needed and reaches your desired temperature in no time.

With TCL BreezeIN, enjoy maximum comfort, noticeable energy savings of up to 60%, and outstanding performance—reliably all year round.

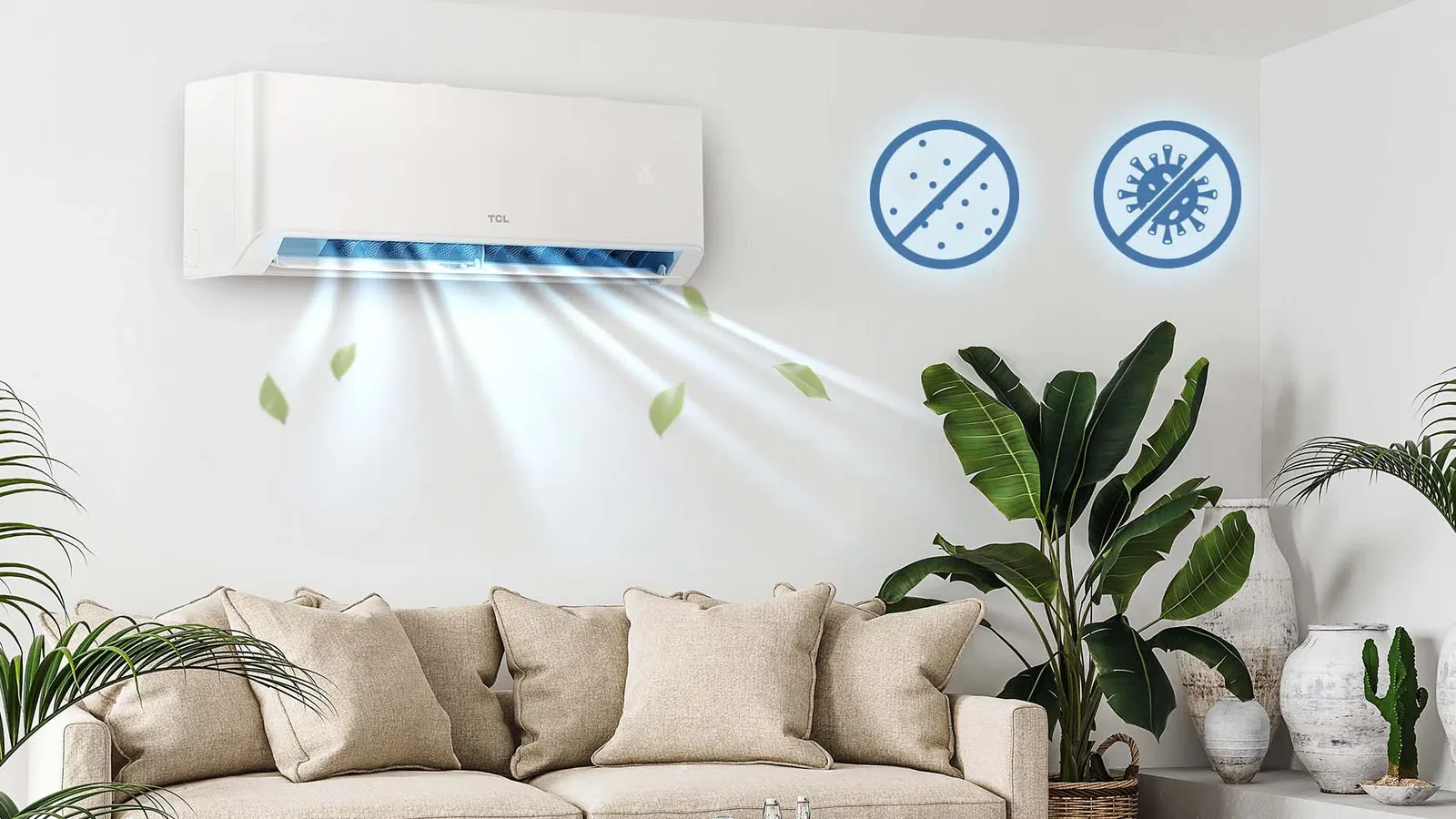

Fresh, Clean Air for Your Home

Enjoy clean and healthy indoor air at all times

The TCL BreezeIN split air conditioner not only ensures perfect temperatures but also the best air quality. An efficient, top-mounted filter reliably removes dust, allergens, and other pollutants from the air—for a fresh and hygienic indoor environment with every breath.

Since the filter is easily accessible, cleaning is particularly straightforward, ensuring that air quality remains at the highest level over the long term. This way, you and your family can enjoy healthy, clean air—day after day.

Trust TCL BreezeIN for a more comfortable and healthier living environment.

I Feel Feature

Smart temperature control right where you are

With the innovative “I Feel” feature of the TCL BreezeIN split air conditioner, climate comfort becomes even more personalized. A built-in temperature sensor in the remote control measures the current temperature right where you are. This allows the air conditioner to adjust its output not based on the room temperature at the unit, but precisely according to your individual comfort zone.

This means that whether you’re on the sofa, at the dining table, or in the bedroom—your TCL BreezeIN automatically adjusts the climate control to your immediate surroundings and ensures a consistently pleasant indoor climate.

Enjoy maximum precision, ultimate comfort, and climate control that flexibly adapts to your needs—with TCL’s intelligent “I Feel” technology.

Smart control anywhere, anytime

Comfort at the touch of a button—anywhere, anytime

With the TCL BreezeIN split air conditioner, you can control your indoor climate more easily and flexibly than ever before. Whether using the classic method with the handy remote control or modern control via the app: you have full control over all functions—anytime and from anywhere.

Using the TCL Home app, you can conveniently adjust operating modes, temperatures, and timers via your smartphone or tablet. Thanks to smart home integration, voice control via Amazon Alexa or Google Assistant is also possible—simply set it up and enjoy your desired temperature with a voice command.

To use the smart features, all you need is a Wi-Fi network and a compatible device. This way, personalized comfort becomes an integral part of your daily life—smart, intuitive, and efficient.

* Requires a Wi-Fi connection, a compatible device, and, if applicable, additional accounts with Google or Amazon. Data and subscription fees may apply. Google is a trademark of Google LLC. Amazon, Alexa, and all associated logos are trademarks of Amazon, Inc. or its subsidiaries.

Fast Cooling & Heating

Perfect Temperature—Faster Than Ever

With the Turbo Start mode on the TCL BreezeIN split air conditioner, you can reach your desired temperature in record time. Whether on hot summer days or cool winter evenings—enjoy rapid cooling or heating so your indoor climate becomes comfortable right away.

The powerful Turbo function maximizes air circulation and compressor performance, adjusting the room temperature in no time. No more long waits: Turn on the air conditioner and enjoy perfect comfort almost instantly.

Ideal for spontaneous visitors, quick relaxation after a long day, or simply when you want an ideal indoor climate right away—Turbo Start mode makes it possible.

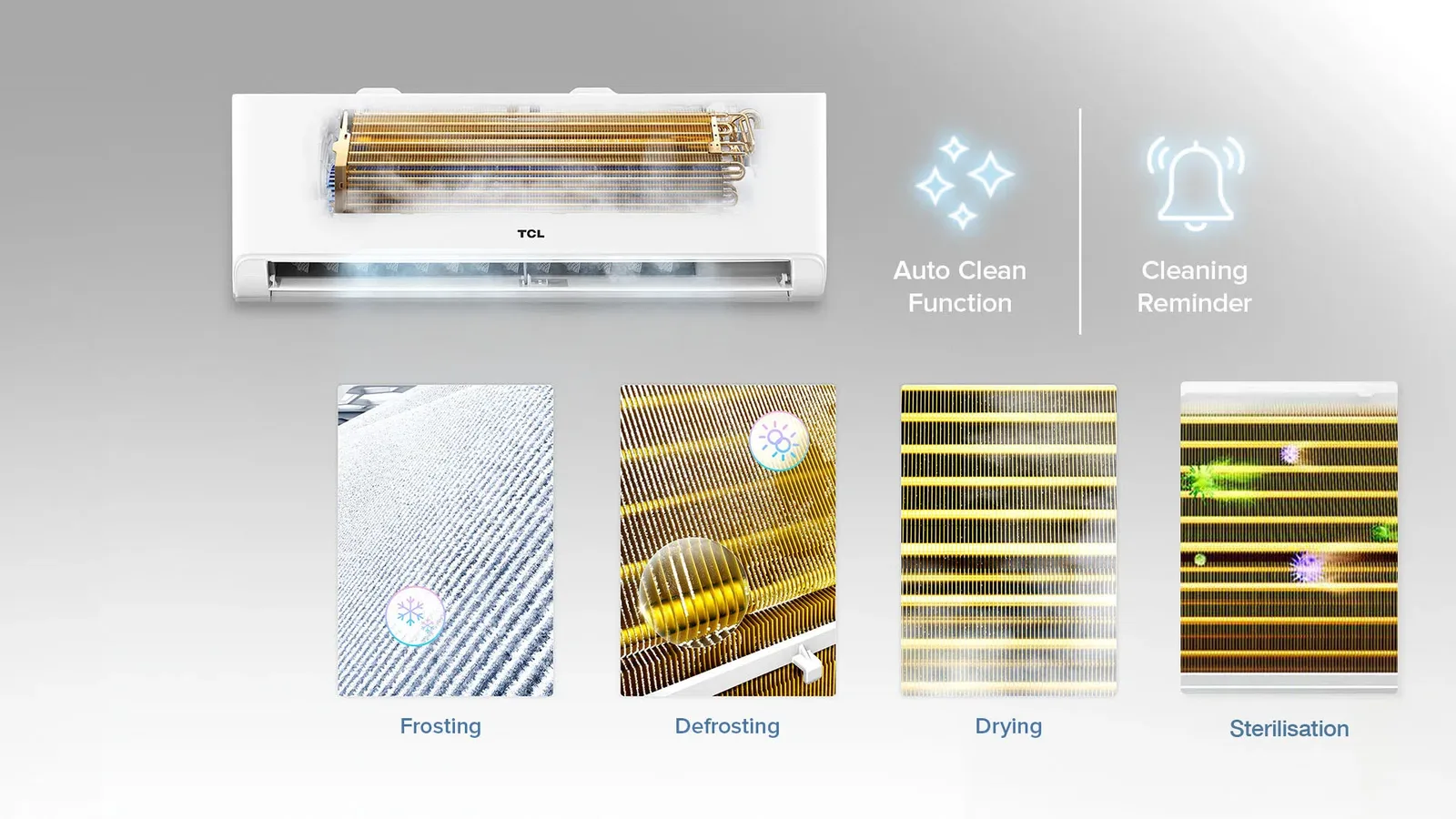

Automatic cleaning for consistently fresh air

Self-cleaning for hygienic freshness and maximum comfort

The TCL BreezeIN split air conditioner features an intelligent 4-stage Auto-Clean function that effectively removes dirt, dust, and contaminants using natural water molecules in the air. The entire cleaning process is automatic and efficient, ensuring that the air in your home always remains fresh and clean.

In addition, the system provides timely reminders when the filter needs cleaning, ensuring the unit’s long-term efficiency and making it easy to maintain hygienic standards. This way, you not only enjoy clean indoor air but also extend the lifespan of your air conditioner.

With Auto-Clean, you can transform your home into a healthy oasis of well-being—with minimal effort and always with the assurance of a system that’s optimally maintained.

Restful Sleep in a Perfect Indoor Climate

Whisper-quiet operation and gentle temperature control for your night’s sleep

With the Sleep Mode on the TCL BreezeIN split air conditioner, you can enjoy restful sleep in an optimal indoor climate. In this mode, the air conditioner adjusts the temperature in subtle increments, ensuring your body stays within the ideal comfort zone while you sleep—whether it’s summer or winter.

At the same time, the noise level is reduced to a minimum, so the air conditioner operates whisper-quietly and doesn’t disturb your rest. The gentle air circulation also prevents unpleasant drafts or sudden temperature fluctuations.

Start every day feeling refreshed and relaxed—with TCL BreezeIN’s intelligent Sleep Mode for comfortable nights and undisturbed rest.

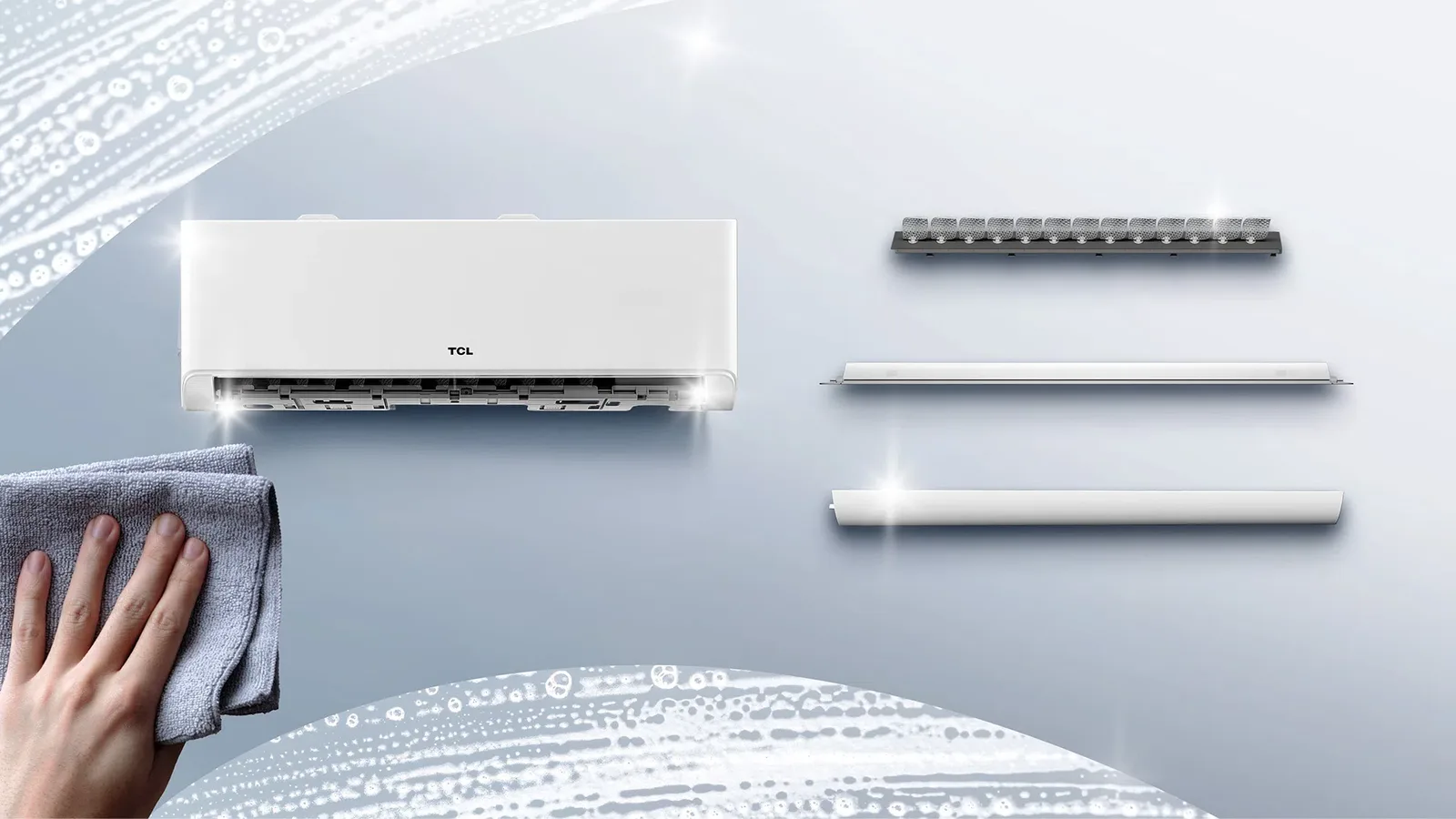

Thoughtful Design for Easy Cleaning

Clean air made easy—with the Easy Clean design

The TCL BreezeIN split air conditioner is designed so that all key components are easily accessible and simple to clean. Thanks to its clever design, filters, louvers, the cover, and other parts can be removed, cleaned, and reinserted without tools.

This ensures your air conditioner not only stays hygienically clean but also maintains its performance over the long term. Regular manual cleaning helps extend the unit’s lifespan and ensures your rooms are always filled with fresh, healthy air.

A well-thought-out hygiene concept for anyone who values comfort, cleanliness, and easy maintenance.

Outstanding performance even in extreme heat

Reliable cooling even in extreme temperatures

When outdoor temperatures soar, the TCL BreezeIN split air conditioner keeps things pleasantly cool. Thanks to its intelligent design featuring an air-cooled E-Box, the system delivers full cooling capacity even at outdoor temperatures up to 50°C.

Its robust technology ensures that comfort isn’t compromised even during heat waves—ideal for regions with intense sunlight or hot summer days. The TCL BreezeIN is designed to operate consistently and reliably even under extreme conditions.

Choose an air conditioner that defies the heat and ensures pleasant coolness in your home at all times—without compromise.

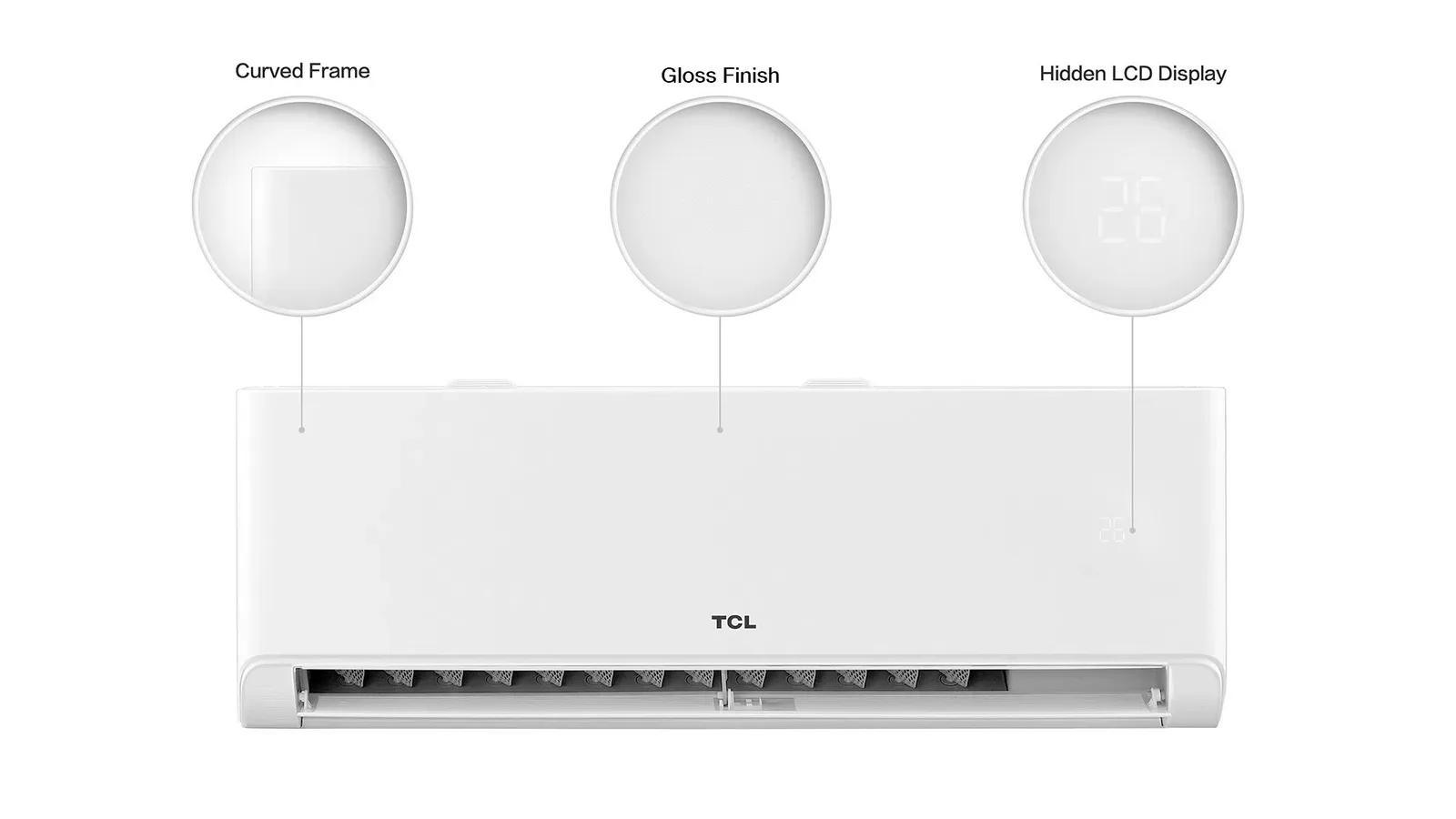

Design Meets Climate Comfort

Climate comfort that blends seamlessly into your home

The TCL BreezeIN split air conditioner impresses not only with its state-of-the-art technology but also with its elegant, minimalist design. With clean lines, a sleek profile, and a high-quality finish, it blends harmoniously into any modern living space—from a stylish loft to a classic living room.

Thanks to its unobtrusive appearance, the focus remains on the room’s ambiance, while you always enjoy pleasant temperatures and fresh air in the background. Comfort and aesthetics go hand in hand here—for an air conditioner that looks just as good as it performs.

With TCL BreezeIN, you’re choosing a solution that not only cools or heats your home but also complements it in style.

MODES

SPECIAL FEATURES OF THE TCL BREEZEIN

I-FEEL

Temperature sensor in the remote control—measures directly where you are for precise comfort.

TIMER

24-hour timer for turning the unit on and off—tailored to your daily routine.

HEALTH

Ionizer technology purifies the air in the room and reduces pollutants and allergens.

SLEEP

Gentle temperature adjustment & whisper-quiet operation—for peaceful and restful nights.

MOLD

Automatic drying of the indoor unit—prevents mold and bacterial growth.

8°C HEAT

Frost protection mode—ideal for vacation homes: Keeps rooms consistently above 8°C.

DISPLAY

LED display with dimming function—lights off at night for undisturbed sleep.

Technical Specifications

TCL MULTISPLIT INDOOR UNIT	FMA-09CHSD/DVI	FMA-12CHSD/DVI	FMA-18CHSD/DVI
Technical Specifications
Cooling Capacity (BTU/h)	9,000	12,000	17,500
Heating capacity (BTU/h)	9,000	12,000	17,800
Airflow (m3/h)	550	550	800
Circulation
refrigerant	R32 1*)	R32 1*)	R32 1*)
Connection pipes (liquid/gas)	6.35 mm / 9.52 mm	6.35 mm / 9.52 mm	6.35 mm / 12.7 mm
Max. Distance Length (m)	15	15	15
Max. distance (height) (m)	10	10	10
Sound pressure
Sound pressure level (dB)	22/25/33/37/40	22/25/33/37/40	27/35/38/41/43
Power Consumption
Power Supply (Ph-V-Hz)	1/220–240/50	1/220–240/50	1/220-240/50
Power Consumption (Cooling/Heating) (W)	35	35	52
Operating current (cooling/heating) (A)	0.2	0.2	0.34
Product Dimensions
Dimensions (W x H x D)	777 x 250 x 201 mm	777 x 250 x 201 mm	910 x 294 x 206 mm
Weight (net)	8.5 kg	8.5 kg	10 kg

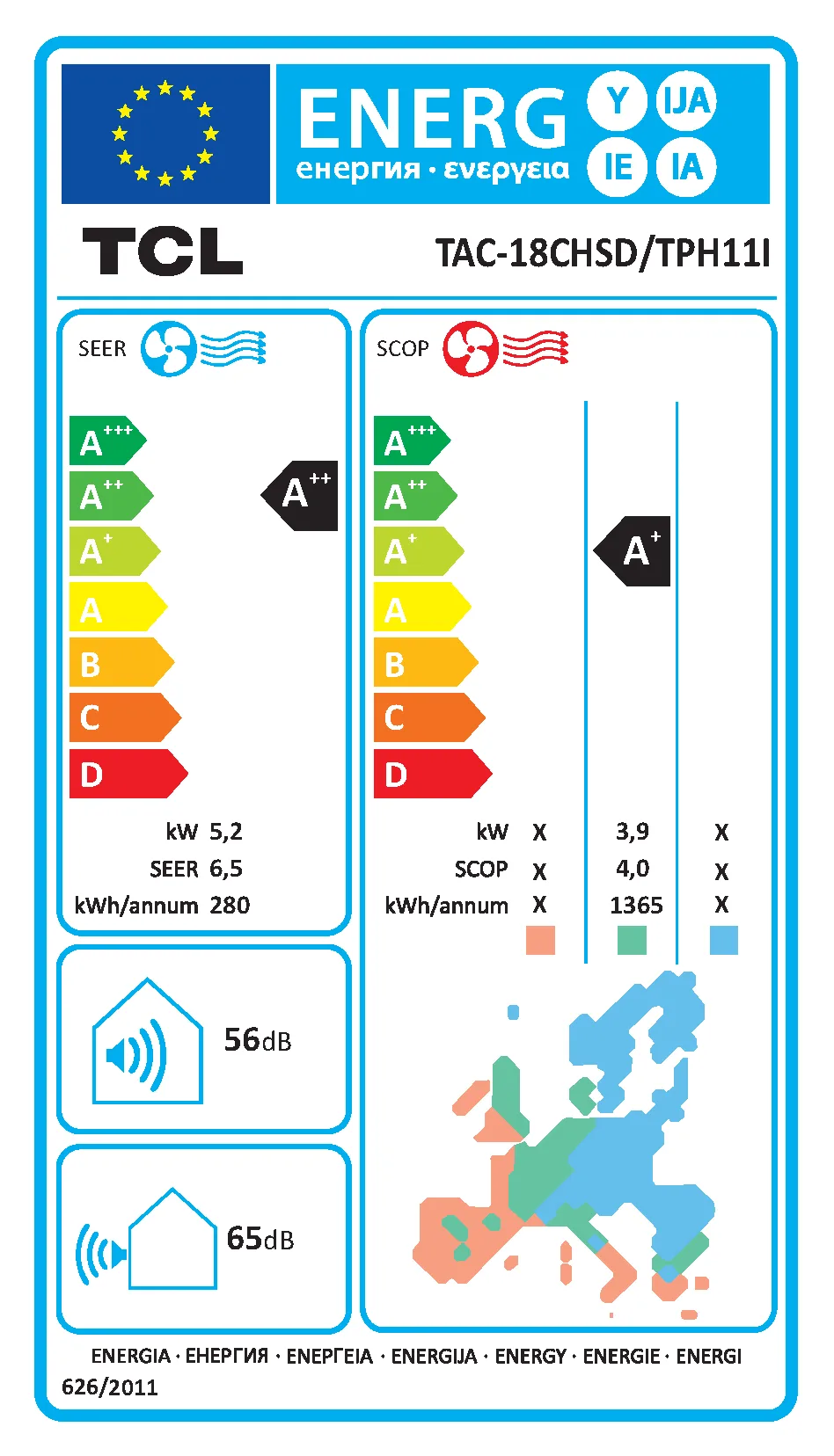

Energy label

Installation

More space for pipes and condensate pumps

Easy removal from the mounting plate

Convenient access for electrical connection

More space for connection and leak testing

Mounting bracket with spacers

Leak testing of connections is easily possible after installation. Up to 120 mm of clearance for working.

Maintenance

Leak test while installed

Thanks to the mounting plate with spacers, leak testing is convenient even after installation.

Circuit Board Replacement

Electronics are easy to replace—quick access in the event of a malfunction or defect in the main circuit board inside the indoor unit.

scope of delivery

TCL BreezeIN Multi-Split Air Conditioner with 4 Indoor Units TAC-09CHSD/TPH11

• TCL 32,000 BTU outdoor unit
• 4 x TCL indoor units FMA-09CHSD/TPH11
• 4 x remote controls
• Outdoor unit pre-charged for up to 5m of piping
