Hantech Elite XA21 18000 BTU/h Quick-Connect Split Air Conditioner Set + 5m Pipe - HNT-18CHSD/XA21 QC
Product number:
AC10710073
In stock
Delivery by 29.09.2026
The HANTECH Quick Connect 18,000 BTU split-system air conditioner with Wi-Fi functionality offers first-class cooling capacity and easy control.
€999.01
incl. 19% VAT
Optional add-ons for this set
Not included in the scope of delivery
Collection possible from our Karlsruhe site (Wikingerstraße 10), Mon–Fri 09:00–12:00 and 13:00–17:00
Scope of delivery
HANTECH Elite 18,000 BTU QUICK CONNECT Split Air Conditioner
This version includes 1 × Hantech Elite 18K Quick Connect Indoor Unit – HNT‑18CHSD‑Elite‑XA21‑QC‑IU and 1 × Hantech Elite 18K Quick Connect outdoor unit – HNT-18CHSD-Elite-XA21-QC-OU (18,000 BTU/h cooling capacity).
TOP BRAND PRODUCT
Pre-charged with R32 for approximately 5 meters of piping. Operation requires a 230V household power supply near the outdoor unit. The indoor unit is powered by an electrical cable connected to the outdoor unit. Thanks to the latest inverter technology with precise speed control, low power consumption, and continuous room temperature monitoring, a comfortable, consistent climate is guaranteed. Evacuation of the lines by an HVAC technician is mandatory for long-term, trouble-free operation.
9,000 BTU
- Room size
up to 30 m² - Internal Dimensions
698×255×190 mm
12,000 BTU
- Room size
up to 45 m² - Internal Dimensions
777×250×201 mm
18,000 BTU
- Room size
up to 60 m² - Internal Dimensions
910×294×206 mm
HANTECH Elite QUICK CONNECT
Hantech Elite QUICK CONNECT Split Air Conditioner: Premium Climate Control for Your Home
Experience the quality and innovation of the Hantech brand with the QUICK CONNECT split air conditioner. This versatile unit offers four modes—cooling, heating, recirculation, and dehumidification—to ensure the perfect indoor climate year-round. It’s conveniently controlled via an app and is smart home-compatible, allowing you to operate the air conditioner from anywhere.
Hantech stands for reliability, backed by a 5-year warranty. The self-cleaning function keeps the unit hygienic and efficient. Turbo mode lets you quickly reach the desired temperature, while Super Silent mode ensures whisper-quiet operation. The eco-friendly R32 refrigerant guarantees sustainable cooling.
Additional features such as I-Feel, Timer, Health, Sleep, and Mildew offer customized settings for your comfort and health. Choose Hantech and enjoy a first-class air conditioning solution.
Compact Design
The compact design of the Hantech QUICK CONNECT split air conditioner combines aesthetics and functionality to blend seamlessly into modern living and workspaces. It is space-saving, energy-efficient, and offers easy maintenance thanks to its easy access.
FEATURES:
- Elegant Integration: Blends harmoniously into any interior.
- Optimized Space Requirements: Ideal for urban apartments or offices.
- Easy Maintenance Access: Simplifies regular maintenance and repairs.
- Energy-Efficient Performance: Minimizes energy consumption and reduces operating costs.
BENEFITS:
- Aesthetic appeal: Enhances the visual appearance of the room.
- User-friendliness: Easy to operate and maintain.
- Long-term cost efficiency: Lower operating costs thanks to energy efficiency.
These features make the Hantech QUICK CONNECT an efficient and stylish choice for modern indoor climate management.
MODES
Cooling
Efficient cooling for hot days. Enjoy a pleasantly cool indoor climate with minimal energy consumption.
Heating
Fast and reliable heat for cold days. Create a cozy atmosphere in your home.
Circulating Air
Optimal air circulation for even temperature distribution. Improves indoor air quality and comfort.
Dehumidification
Effectively reduces humidity for a healthier indoor environment. Prevents mold growth and improves living comfort.
Turbo Mode
Maximum power and air circulation shorten the time it takes to reach the desired temperature
SuperSilence
Minimal fan noise ensures whisper-quiet operation and peaceful nights

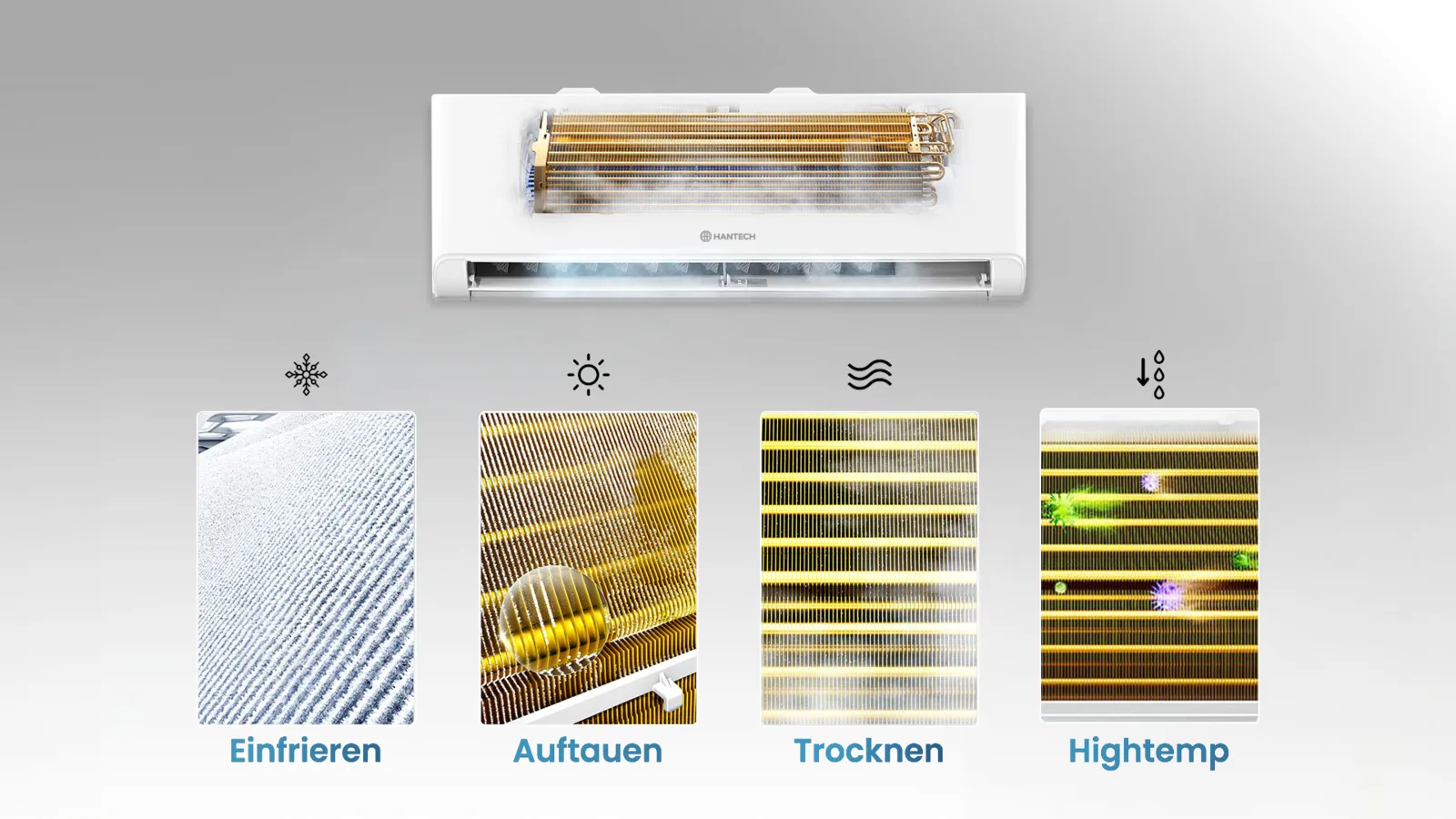

Self-Cleaning
How It Works
1. Freezing
Freeze the heat exchanger to trap dirt particles
2. Defrosting
It is thawed to loosen the dirt and rinse it away
3. Drying
Preparation and drying of the heat exchanger
4. High-Temperature
Harmful microorganisms are killed for 30 minutes at 56°C
Special Features
I-FEEL
Temperature is measured on the remote control
TIMER
24-hour on/off timer
HEALTH
Ionization of indoor air
SLEEP
Prevents the room from cooling down overnight
MOLD
Drying prevents bacterial growth
8°C HEAT
Frost protection—rooms always stay above 8°C
DISPLAY
The LED display can be turned off if needed
Technical Specifications
| IN ACCORDANCE WITH EU REGULATION 626/2011 | HNT 9000 QC | HNT 12000 QC | HNT 18000 QC |
|---|---|---|---|
| Technical Specifications | |||
| BTU | 9,000 | 12,000 | 18,000 |
| Design Load (Cooling) | 2.6 kW | 3.4 kW | 5.1 kW |
| Design load, heating mode | 2.6 kW | 3.4 kW | 5.1 kW |
| Energy efficiency class (cooling) | A++ | A++ | A++ |
| Energy efficiency class (heating) | A+ | A+ | A+ |
| SEER (COP) | 6.3 | 6.1 | 6.1 |
| SCOP () | 4.0 | 4.0 | 4.0 |
| Electricity consumption for cooling | 144 kWh year 1*) | 195 kWh/year 1*) | 293 kWh/year 1*) |
| Electricity consumption for heating | 735 kWh/year 1*) | 840 kWh/year 1*) | 1,330 kWh/year 1*) |
| Sound power level, indoor | max. 50 dB(A) re 1 pW | max. 50 dB(A) re 1 pW | Max. 53 dB(A) re 1 pW |
| Sound power level, exterior | Max. 60 dB(A) re 1 pW | Max. 60 dB(A) re 1 pW | Max. 65 dB(A) re 1 pW |
| Room size | up to 30 m² | up to 45 m² | Up to 60 m² |
| Cable length | 1.5 m | 1.5 m | 1.5 m |
| Refrigerant line length | 5.0 m | 5.0 m | 5.0 m |
| Internal dimensions (WxHxD) | 698×255×190 mm | 777×250×201 mm | 910×294×206 mm |
| External dimensions (WxHxD) | 777×498×290 mm | 777×498×290 mm | 835×602×349 mm |
| Internal weight | 6.5 kg | 8 kg | 10 kg |
| External weight | 24 kg | 22 kg | 35 kg |
1*) Annual energy consumption (kWh/year). Based on standard test results. Actual consumption depends on usage and the appliance’s location. 2*) Refrigerant leaks contribute to climate change. Refrigerants with a lower GWP (GWP) contribute less to global warming in the event of a leak than those with a higher GWP (GWP). This unit contains a refrigerant with a GWP of 675. Thus, a leak of 1 kg of this refrigerant would have an impact on global warming 675 times greater than 1 kg of CO2 over a period of 100 years. Do not perform any work on the refrigeration circuit or disassemble the unit—always consult qualified personnel.
FUTURE-PROOF, ECO-FRIENDLY
R32
Why switch to R32?
According to EU Regulation CE 517/2014, R410A is being phased out and replaced with non-fluorinated gases (F-gases) such as R32 for environmental reasons. Smaller fill quantities are required, and it can be more easily recycled and reused.
Environmentally Friendly
Positive effects include no impact on the ozone layer and a reduction in global warming potential. A transition period for R410A has been granted starting in 2017—as of 2025, imports for systems with a charge of less than 3 kg will be prohibited. As a simple refrigerant, rather than a compound, R32 can be easily recycled and reused. This makes it environmentally friendly.
Advantages over R410A
- ∼70% lower global warming potential
- 0% ozone impact
- Future-proof
- Lower global warming potential
Vision for the Future
Today, protecting the environment is one of society’s most important challenges. Both end users and manufacturers are doing their best to protect the environment as much as they can. As one of the pioneers in air conditioning manufacturing, HANTECH is committed to R32.
Effort for HVAC Technicians
Since “R32” requires no extra effort and is as easy to install as “R410A,” no additional costs will be incurred. On the contrary, “R32” is more cost-effective because less refrigerant is needed to achieve the same cooling capacity.
scope of delivery
HANTECH QUICK CONNECT
- HANTECH QUICK CONNECT Outdoor Unit TAC-09CHSD Elite XA21 QC / O
- HANTECH QUICK CONNECT Indoor Unit TAC-09CHSD Elite XA21 QC / I
- 4x Vibration Dampers / Rubber Buffers for Outdoor Unit
- Electrical connection cable, 1.5 m
- remote control
- Condensate drain hose
- 1x 1/4 copper pipe, 5 m
- 1x 3/8 copper pipe, 5 m
- Outdoor unit pre-filled for up to 5 m of piping
Technical Data
Net Weight
10
Width
910
Height/Lenght
294
Depth
206
Product Warranty
3
Cooling Capacity
17504
Heating Capacity
17845
Capacity Range (Cooling)
4265 BTU/h ~ 20199 BTU/h
Capacity Range (Heating)
4606 BTU/h ~ 21427 BTU/h
SCOP
4
SEER
6.3
Temperature Setting Range
16°C ~ 31°C
Operating Temperature Range (Cooling)
55°C ~ -15°C
Operating Temperature Range (Heating)
30℃ ~ -20℃
Sound Power Level dB(A)
37
Sound Pressure Level dB(A)
27
Refrigerant Pipe Diameter (Gas)
3/8" - (Φ9.52)
Refrigerant Pipe Diameter (Liquid)
1/4" - (Φ6,35)
Refrigerant / Fluid
R32
Recommended Maximum Application Area m²
60
Installation Pipe Maximum Height
10
Installation Pipe Maximum Length
25
Net Weight
36
Width
835
Height/Lenght
602
Depth
349
Product Warranty
3
Cooling Capacity
17504
Heating Capacity
17845
Capacity Range (Cooling)
4265 BTU/h ~ 20199 BTU/h
Capacity Range (Heating)
4606 BTU/h ~ 21427 BTU/h
SCOP
4
SEER
6.3
Temperature Setting Range
16°C ~ 31°C
Operating Temperature Range (Cooling)
55°C ~ -15°C
Operating Temperature Range (Heating)
30℃ ~ -20℃
Sound Power Level dB(A)
65
Sound Pressure Level dB(A)
55
Refrigerant Pipe Diameter (Gas)
3/8" - (Φ9.52)
Refrigerant Pipe Diameter (Liquid)
1/4" - (Φ6,35)
Refrigerant / Fluid
R32
Recommended Maximum Application Area m²
60
Installation Pipe Maximum Height
10
Installation Pipe Maximum Length
25
