TCL BreezeIN P5 9K Split Air Conditioner Set - S09P5S1
Optional add-ons for this set
Not included in the scope of delivery
TCL BreezeIN Split Air Conditioner 9000 BTU 2.6 kW White
TOP BRAND PRODUCT
A 230V household power supply near the outdoor unit is required for operation. The indoor unit is powered by an electrical cable connected to the outdoor unit. Thanks to the latest inverter technology with precise speed control, low power consumption, and continuous room temperature monitoring, a comfortable, consistent climate is guaranteed. Evacuation of the lines by an HVAC technician is mandatory for long-term, trouble-free operation.
Refrigerant
charge R32
- 0.49 kg
Indoor unit (W x H x D)
- 790x275x192 mm
Rated cooling capacity (W)
- 2600 (940–3300)
Rated heating capacity (W)
- 2,630 (940–3,360)
TCL Split Air Conditioner
TCL BreezeIn Split Air Conditioner: Premium Climate Control for Your Home
Experience the quality and innovation of the TCL brand with the TCL BreezeIn Split Air Conditioner, which contributes to healthy indoor air quality with breathable fresh air and eliminates unwanted odors. This versatile unit also offers many modes, including rapid cooling & heating, Eco Mode, 3D airflow, and Dry Mode, to ensure the perfect indoor climate in every season. It’s conveniently controlled via an app and is smart home-compatible, so you can operate the air conditioner from anywhere.
TCL stands for reliability, backed by a 5-year warranty. The self-cleaning function keeps the unit hygienic and efficient. Sleep mode ensures pleasantly quiet operation so you won’t be disturbed at night. The eco-friendly R32 refrigerant guarantees sustainable cooling.
Additional features such as I-Feel, a 24-hour timer, intelligent airflow, and sleep mode offer customized settings for your comfort and health. Choose TCL and enjoy a first-class air conditioning solution.
Smart Energy Saving
Thanks to T-AI, the compressor can proactively adjust its operating frequency and direct most of the cooling capacity toward precise temperature control—rather than overcooling.
A+++ Energy Efficiency Class
The TCL BreezeIN 2.0 impresses with outstanding energy efficiency in the A+++ class—in both cooling and heating modes.
Optimize Energy Consumption
Smart monitoring of your electricity consumption
The TCL HOME app provides users with a real-time graph of their electricity consumption, allowing them to keep track of their air conditioner’s energy usage at all times and optimize it effectively.

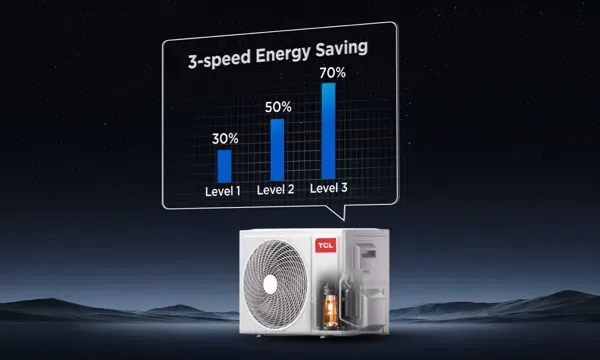

Generator Mode
The three-stage generator mode controls the compressor to regulate current and energy consumption across six different power levels. This maximizes energy efficiency and delivers noticeable electricity savings.
Easy Installation
Installation: A minimum clearance of 120 mm must be maintained; compatible mounting brackets are available.
Integrated Design: Features a built-in level and clearly marked installation instructions.
π-Design: Reinforced and more robust construction.

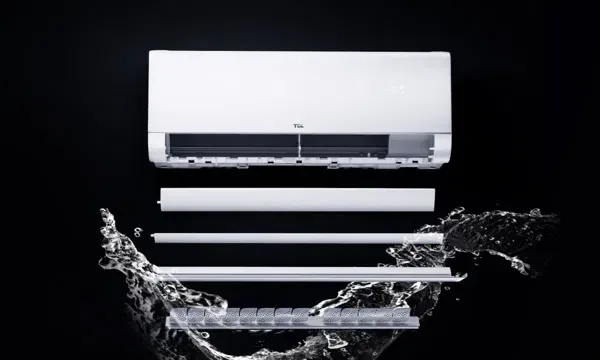

Easy Maintenance
Enjoy effortless deep cleaning!
Thanks to the Full-Buckle design, your air conditioner—including the cross-flow fan—can be thoroughly cleaned in just five simple steps.
OTA Update
With modern cloud technology, your electronic controls—such as circuit boards—are automatically kept up to date.

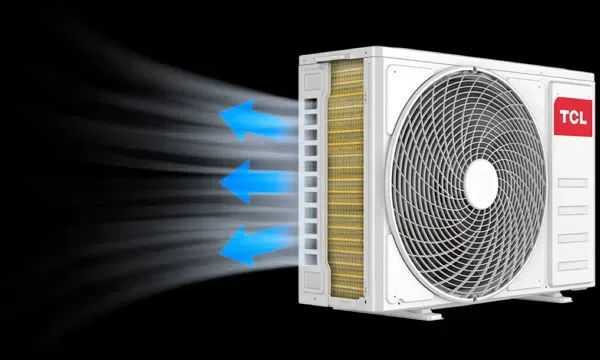

Self-Cleaning Outdoor Unit
Experience effortless cleaning thanks to state-of-the-art technology.
Our innovative Reverse Clean technology effectively removes dust and dirt from the outdoor unit, keeps your air conditioner free of clogs, thereby increasing cooling efficiency and extending its service life.

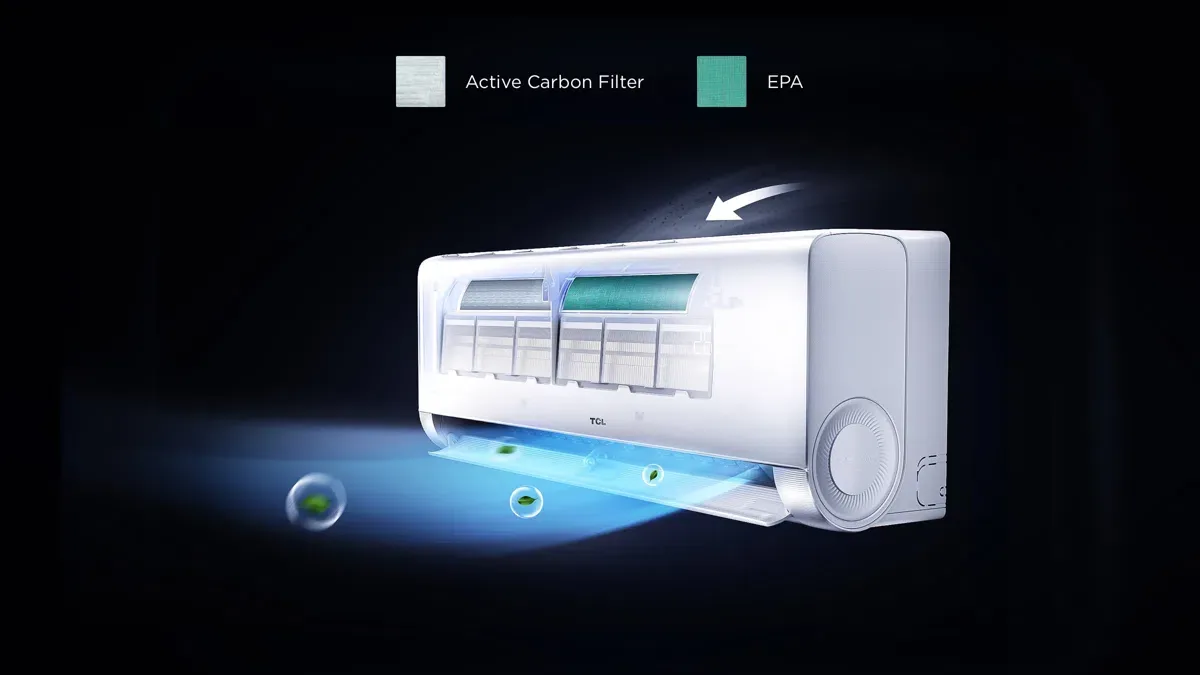

EPA Filter
The filter system combines an activated carbon filter with an EPA filter, ensuring noticeably cleaner and healthier air—for your well-being and maximum comfort.
Smart Control
Effortlessly connect your air conditioner to TCL HOME, Google Assistant, and Alexa—for convenient and smart control via app or voice command.
Automatic Restart After a Power Outage
If the power goes out, your air conditioner will resume operation exactly where it left off once power is restored—without any action on your part.
Compatible with BMS Systems
Fully compatible with common building management systems, the air conditioner enables convenient and centralized monitoring and control.
Dry-contact control
The air conditioner can be automatically turned on or off—for example, depending on whether doors or windows are open or closed—or via the fire alarm system for rapid emergency control.

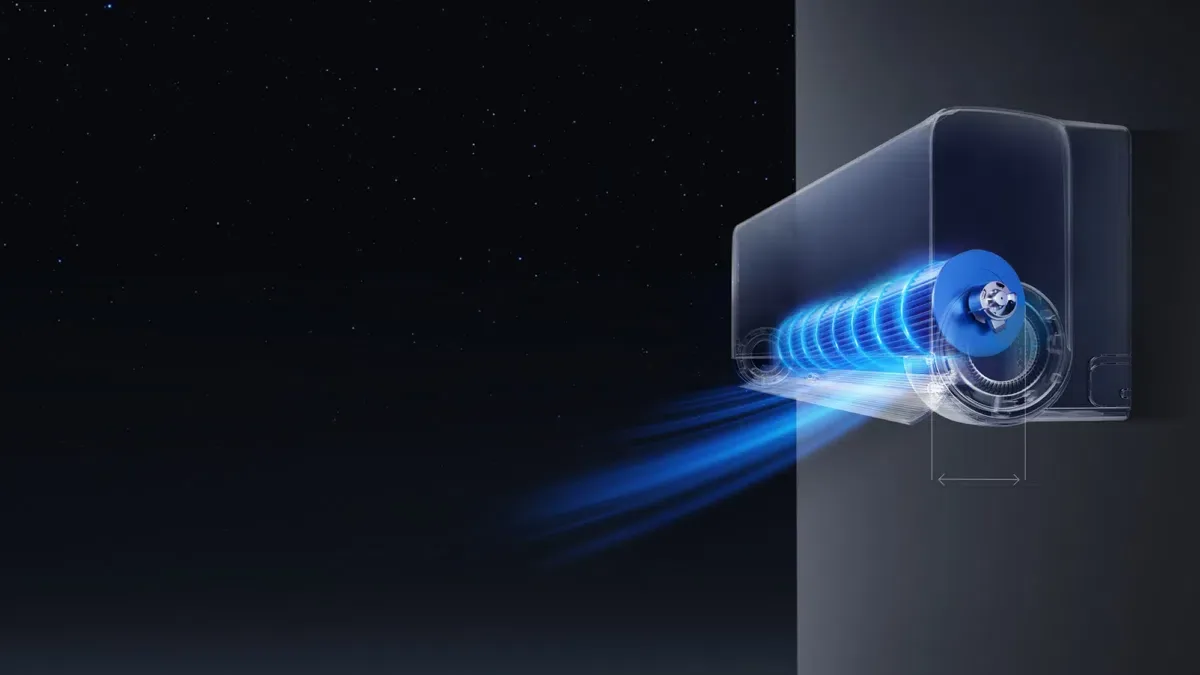

108 mm large-diameter cross-flow fan
Enjoy a powerful, long-range airflow that delivers a noticeably intense and refreshing cooling experience.
TCL BreezeIN P5 Modes
Cooling
Pleasantly cool with high efficiency: The gentle breeze and shower cooling distribute the air draft-free from the ceiling, while Eco Mode reduces energy consumption (Energy Class A++, SEER up to 6.5—depending on the model).
Heating
Fast, even heat through upward-flow heating with optimized humidity. Efficient operation (energy class A+) and designed for outdoor temperatures ranging from approx. −20 °C to +24 °C.
Gentle Breeze
Draft-free cooling for noticeably greater comfort: Prevents cold, direct airflow and ensures a natural, comfortable indoor climate.
4-Way Airflow
Intelligent 3D/4-way airflow directs air in all directions, thereby achieving uniform temperature distribution throughout the entire room.
Special Features – TCL BreezeIn P5 Single-Split
I-FEEL
Precise comfort control: A built-in sensor in the remote control measures the temperature where you are and adjusts the system accordingly.
TIMER
24-hour timer for automatic on/off operation—for scheduled operation and more efficient use.
SLEEP
Sleep mode for quiet, draft-free operation at night; the temperature is gently adjusted to help you fall asleep comfortably.
Dry
Dry mode & 4-step self-cleaning (humidify, freeze, sterilize, dry) for cleaner air and reduced humidity.
Technical Specifications
| Model Name | SN09P5S1 | SN12P5S1 | SN18P5S2 | SN24P5S2 |
|---|---|---|---|---|
| Technical Specifications | ||||
| BTU | 9,000 | 12,000 | 18,000 | 24,000 |
| Rated cooling capacity | 2.6 kW | 3.4 kW | 5.2 kW | 7.02 kW |
| Rated heating capacity | 2.63 kW | 3.42 kW | 5.3 kW | 7.1 kW |
| Energy efficiency class (cooling) | A++ | A++ | A++ | A++ |
| Energy efficiency class for heating | A+ | A+ | A+ | A+ |
| SEER () | 6.1 | 6.1 | 6.5 | 6.5 |
| 4.0 | 4.0 | 4.0 | 4.1 | |
| Operating temperature in cooling mode | 15°C – 53°C | 15°C – 53°C | 15°C – 53°C | 15°C – 53°C |
| Operating temperature (heating mode) | -20°C – 24°C | -20°C – 24°C | -20°C – 24°C | -20°C – 24°C |
| Sound power level (indoor) | max. 51 dB(A) | max. 51 dB(A) | max. 56 dB(A) | max. 58 dB(A) |
| Sound power level (outdoor) | max. 60 dB(A) | max. 60 dB(A) | max. 65 dB(A) | Max. 69 dB(A) |
| Circulation | ||||
| Refrigerant (GWP) | R32 (675) | R32 (675) | R32 (675) | R32 (675) |
| Refrigerant (Details) | ||||
| Charge (kg) | 0.49 kg | 0.805 kg | 0.96 kg | 1.07 kg |
| CO₂ equivalent (t) | 0.331 t | 0.544 t | 0.648 t | 0.723 t |
| Sound pressure (interior) | ||||
| Interior | 41 dB(A) and up | 41 dB(A) and up | 47 dB(A) and above | 47 dB(A) and up |
| Outside | 50 and up dB(A) | 50 and up dB(A) | 56 and up dB(A) | 59 dB(A) and up |
| Power consumption | ||||
| Power supply | 220–240V~/50Hz/1P | 220–240 V AC /50Hz/1P | 220–240V~/50Hz/1P | 220–240 V AC /50Hz/1P |
| Product Dimensions | ||||
| Interior Dimensions (W x H x D) | 790×275×192 mm | 790×275×192 mm | 920×306×195 mm | 1100×333×222 mm |
| External Dimensions (W x H x D) | 712×276×459 mm | 712×276×459 mm | 853×602×349 mm | 920×699×380 mm |
| Net weight | 8 kg | 8 kg | 10 kg | 14 kg |
| Weight (external) | 20 kg | 20 kg | 30 kg | 39 kg |

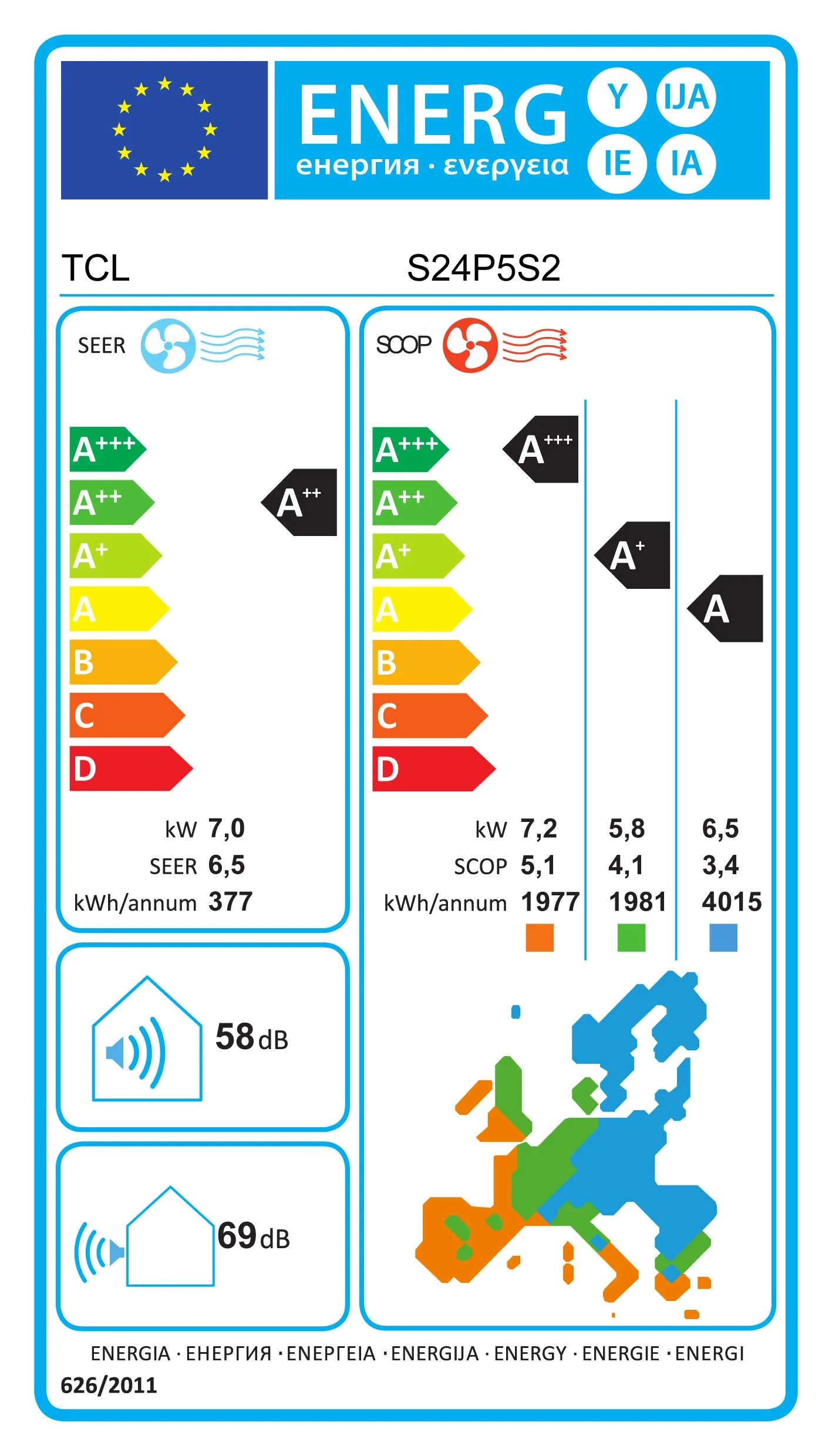

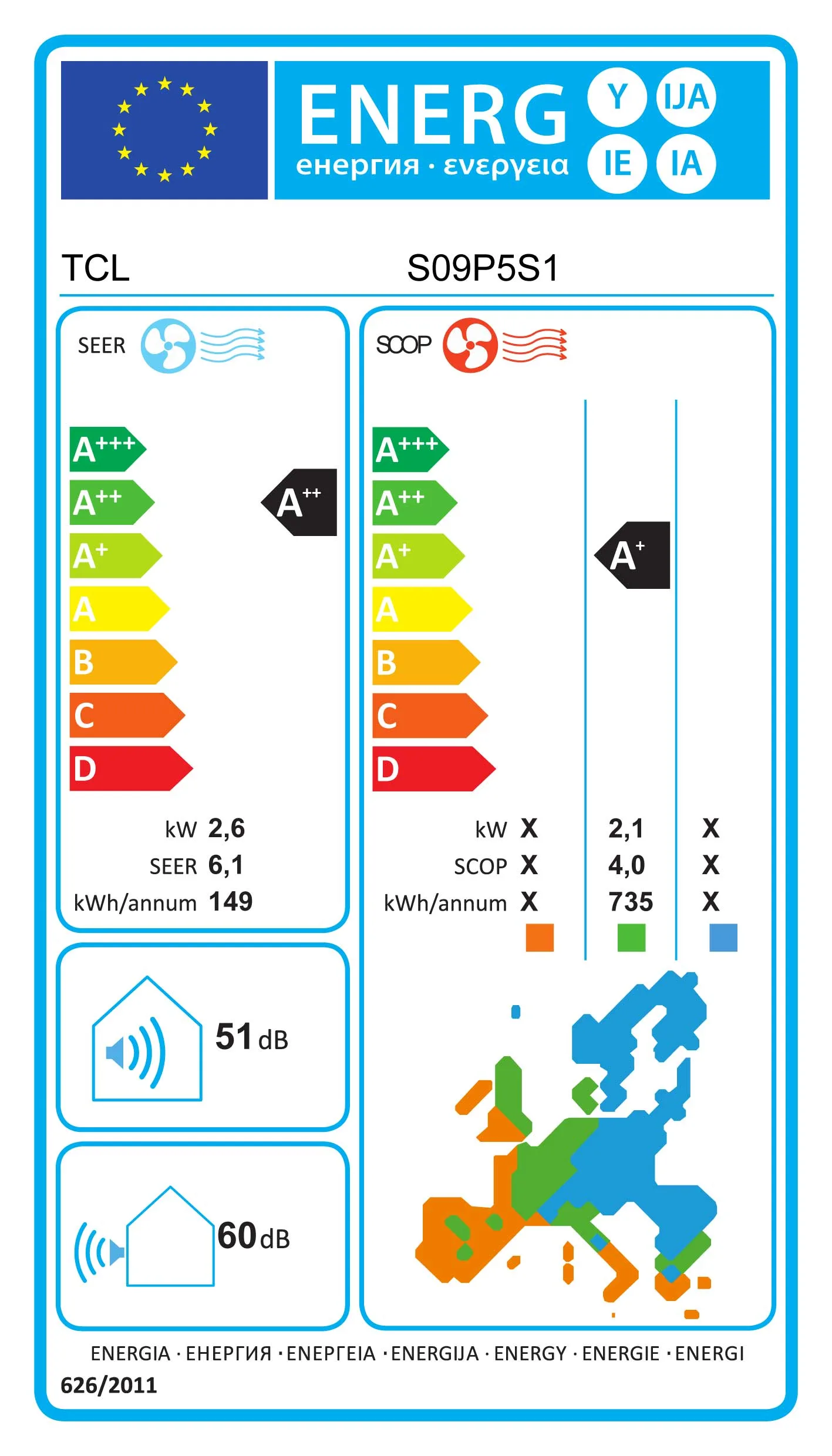

| Energy Label |
|
|
|
|
1*) Energy consumption based on standard testing. 2*) This unit contains the refrigerant R32 (GWP 675).

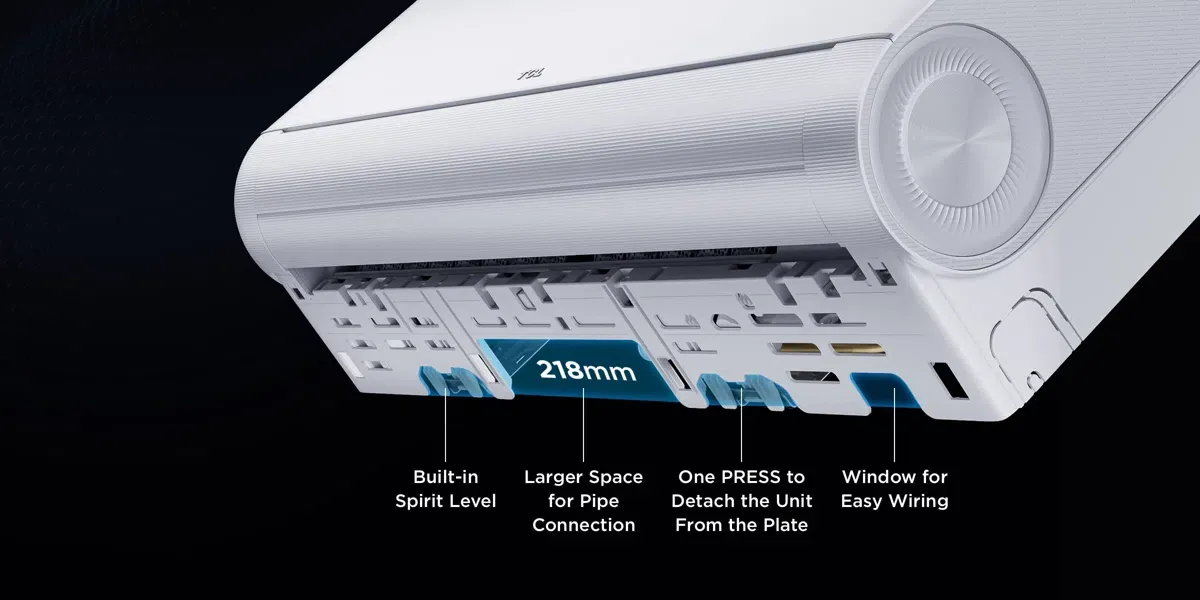

Installation
More space for piping and condensate pumps
Easy removal from the mounting plate
Convenient access for electrical connections
More space for connections and leak testing
Mounting bracket with spacers
Leak testing of connections is easily possible after installation. Up to 120 mm of clearance for working.
Maintenance
Leak test while installed
Thanks to the mounting plate with spacers, leak testing is easy even after installation.
Circuit Board Replacement
Electronics are easy to replace—quick access in the event of a malfunction or defect in the main circuit board inside the indoor unit.
FUTURE-PROOF, ECO-FRIENDLY
R32
Why switch to R32?
According to EU Regulation CE 517/2014, R410A is being phased out and replaced with non-fluorinated gases (F-gases) such as R32 for environmental reasons. Lower charge quantities are required, and the gas can be more easily recycled and reused.
Environmentally Friendly
Positive effects include no impact on the ozone layer and a reduced contribution to global warming. A transition period for R410A will be granted starting in 2017—as of 2025, imports for systems with a charge of <3 kg will be prohibited. As a simple refrigerant, rather than a compound, R32 can be easily recycled and reused. This makes it environmentally friendly.
Advantages over R410A
- ∼70% lower global warming potential
- 0% ozone depletion potential
- Future-proof
- Lower global warming potential
Vision for the Future
Today, protecting the environment is one of society’s most important challenges. Both end users and manufacturers are doing their best to protect the environment as much as they can. As one of the pioneers in air conditioning manufacturing, TCL is committed to “R32.”
Effort for HVAC Technicians
Since “R32” requires no extra effort and is as easy to install as “R410A,” there will be no additional costs. On the contrary, “R32” is more cost-effective because less refrigerant is needed to achieve the same cooling capacity.
scope of delivery
TCL BreezeIn Split Air Conditioner
- 1x TCL ST09P2 outdoor unit
- 1x TCL SN09P5S1 indoor unit
- 1x Remote Control
- 1x User Manual
Note: The scope of delivery does not include mounting brackets.
